- Description
-
Electric counterbalanced stacker(CPD20J-R series)
Product Features
1.With self-diagnostic function, the handheld unit and the controller can display fault code, and quickly accurately troubleshoot;
2.You can choose full-free upgrading, which is convenient for vehicles to have restriction in the container or other ceiling;
3.The front wheel uses a large wheel design, the vehicle chassis is improved, the secondary wheel on both sides of the drive wheel provides a safe aid for the chassis, making the whole vehicle have both strong obstacles, and no stability. Operation is more flexible;
4.The standard equipment is the lifting limit function, when the fork is raised to the item, the system automatically cuts off the uplink power supply and smooth parking can effectively prevents the occurrence of "tweakstorm" accidents;

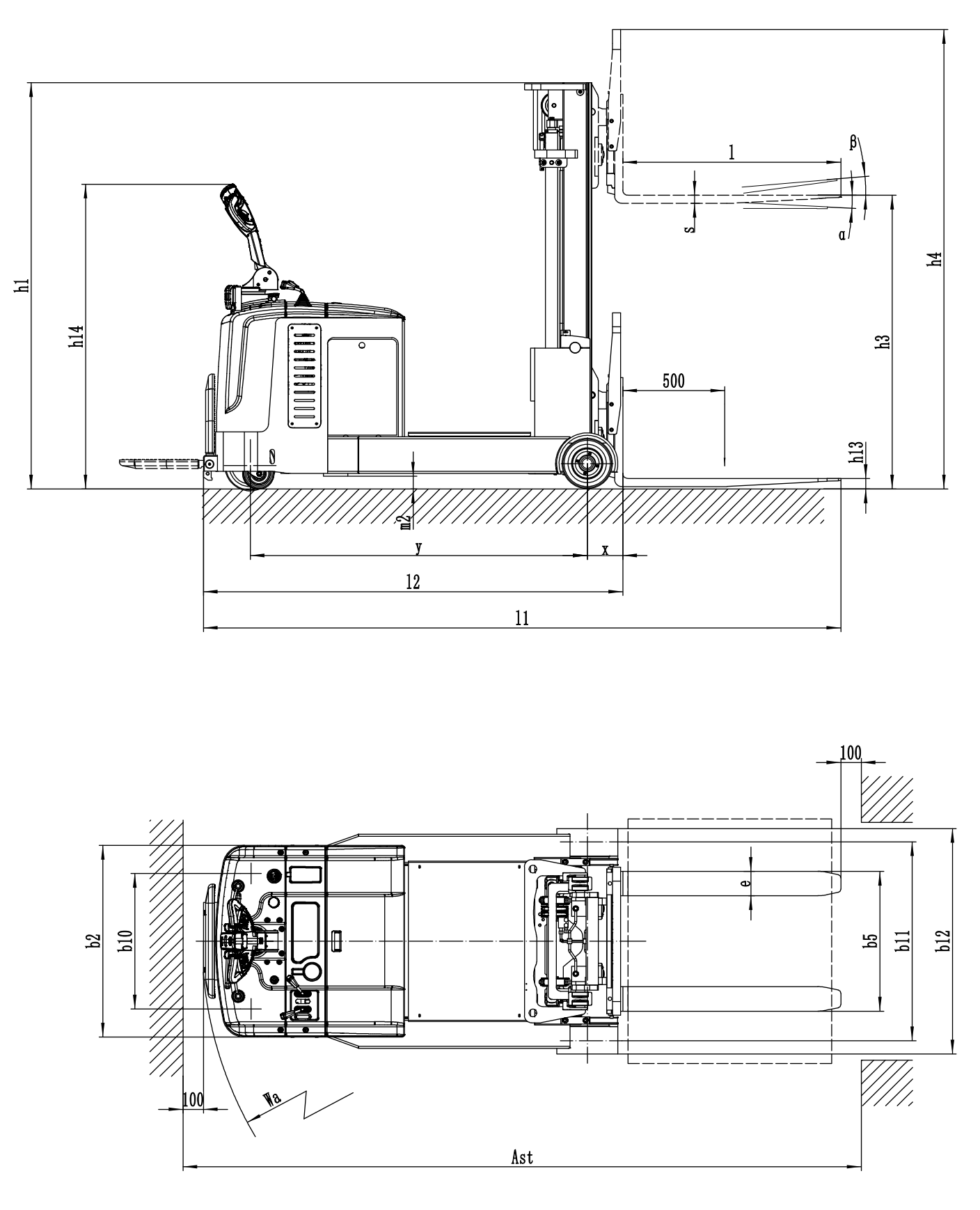

Characteristics Model CPD2030J-R CPD2060J-R Power unit Electric Electric Operation Pedestrian Pedestrian Rated traction weight Q (kg) 2000 2000 Load centre c (mm) 500 500 Axle centre to fork face x (mm) 174 174 Wheel base y (mm) 1654 1654 Weights Service weight with battery kg 2900 3240 Wheels/Tyres Wheels type PU PU Driving wheel size Φ×w(mm) Φ250×127（PU） Φ250×127（PU） Bearing wheel size Φ×w(mm) Φ250×120 Φ250×120 Wheels, number front/rear (x = driven) 1，4/2 1，4/2 Track width b10 (mm) 665 665 Track width b11 (mm) 976 976 Dimensions Height of mast, lowered h1 (mm) 1995 2190 Free lift h2 (mm) 0 1305 Lift h3 (mm) 3000 4500 Height of mast, extended h4 (mm) 3865 5420 Overall height(With handle h14 (mm) 1075/1502 1075/1502 lowered hength h13 (mm) 40 40 Overall length l1 (mm) 3130 3130 Length to fork face l2 (mm) 2060 2060 Overall width b1/ b2 (mm) 940/1106 940/1106 Fork dimensions s/e/l (mm) 40/120/1070 40/120/1070 Width of forks b5 (mm) 240-700 240-700 Min.Ground clearance m2 (mm) 48 48 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 3420 3420 Aisle width with pallet 800 x 1200 along forks Ast (mm) 3530 3530 Min.Turning radius Wa (mm) 1900 1900 Performance Travel speed,laden/unladen (km/h) 5.2/5.5 5.2/5.5 Lifting speed, with/without load (mm/s) 90/120 90/120 Lowering speed, with/without load (mm/s) 120/130 120/130 Maximum climbing ability, with/without load (%) 6/8 6/8 Service brake Electromagnetic Electromagnetic Drive Drive motor, 60 minute rating (kW) 2.5 2.5 Lift motor rating at S3 15% (kW) 4.5 4.5 Battery voltage/rated capacity (V/Ah) 24/280 24/280 Battery weight (± 5%) (kg) 275 275 Others Type of drive control AC AC Noise level at operator‘s ear (dB(A)) ≤75 ≤75
