- Description
-
1.The electronic power steering system is standard in the whole series, the power response is keen, the handle is comfortable and easy to control , and the driving experience is smooth;
2.Advanced AC drive system, the motor can get more energy and greater braking torque, more powerful and efficient;
3.Variable wheelbase structure design, the front axle can be moved, thus changing the wheelbase length，It is more convenient to work in a narrow environment;
4.Innovative multi-function operating handle settings, the function of tilting forward and backward is also revolutionary integrated on the handle, the operation is more convenient and quick;
5.Standard battery side pull mechanism, battery replacement is more convenient and fast, improve work efficiency.

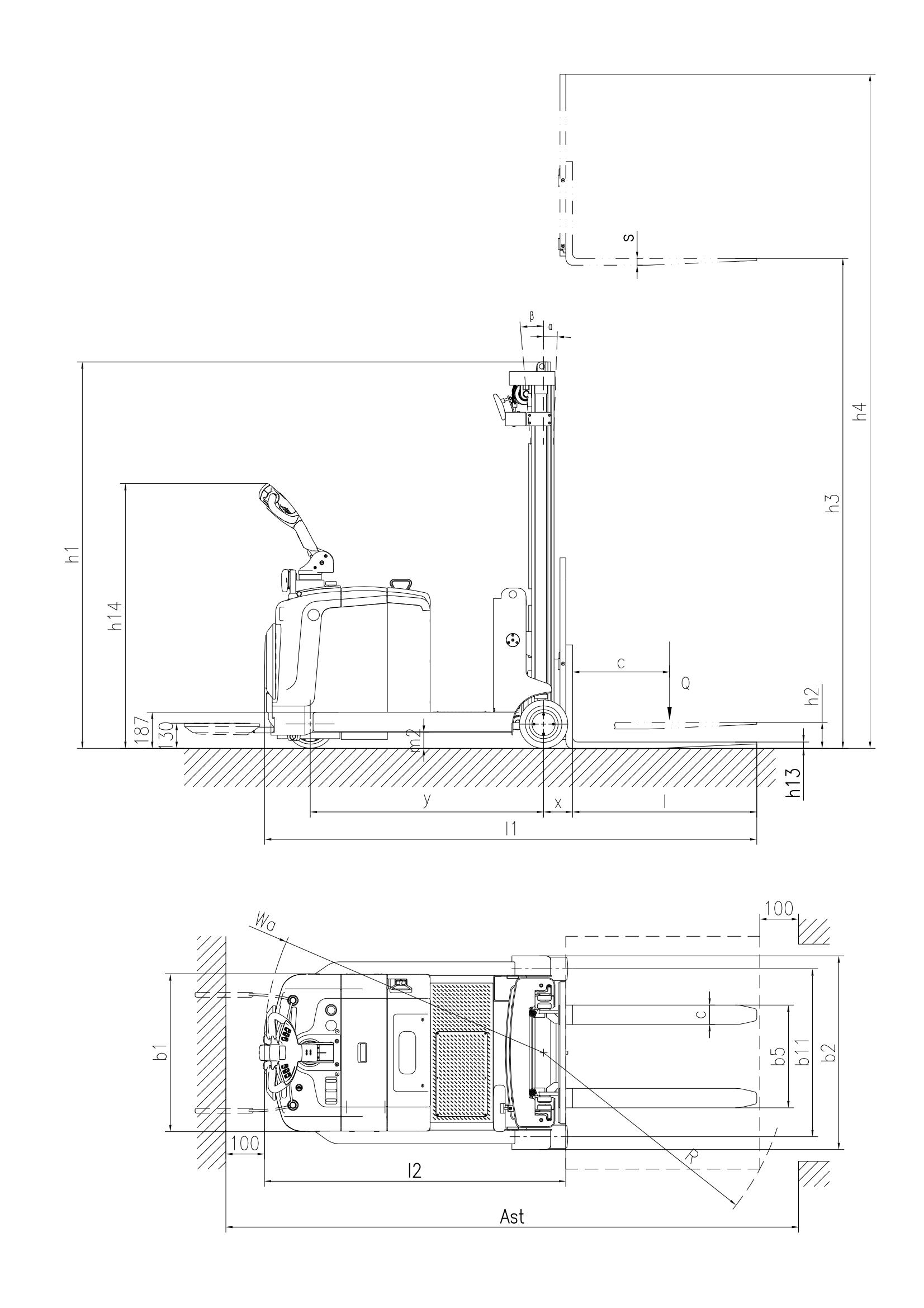

Characteristics Model E1030GL E1330GL E1530GL Power unit Electric Operation Standing on Rated traction weight Q (kg) 1000 1300 1500 Load centre c (mm) 500 Axle centre to fork face x (mm) 150 Wheel base y (mm) 1189 1316 Weights Service weight with battery kg 1460 1660 1860 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ250×75 Bearing wheel size Φ×w(mm) Φ250×120 Wheels, number front/rear (x = driven) 2/1x Track width b11 (mm) 866 Track width b10 (mm) 0 Dimensions Mast/fork carriage tilt, forward/backward α/β (°) 2/5 Height of mast, lowered h1 (mm) 1995 Free lift h2 (mm) 100 Lift h3 (mm) 3000 Height of mast, extended h4 (mm) 3949 Height of seat/stand-on platform h7 (mm) 127 Overall height(With handle h14 (mm) 1105/1440 Lowered fork height h13 (mm) 40 Overall length l1 (mm) 2538 2665 Length to fork face l2 (mm) 1588 1715 Overall width b1/ b2 (mm) 814/998 Fork dimensions s/e/l (mm) 35/100/950 Width of fork carriage b3 (mm) 220/720 Width of forks m1 (mm) 90 Min.Ground clearance m2 (mm) 86 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2945 3067 Aisle width with pallet 800 x 1200 along forks Ast (mm) 3055 3177 Min.Turning radius Wa (mm) 1445 1570 Performance Travel speed,laden/unladen (km/h) 5.2/5.5 Lifting speed, with/without load (mm/s) 100/120 100/120 100/120 Lowering speed, with/without load (mm/s) 130/120 Climbing ability, with/without load (%) 6/8 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.7 1.7 1.7 Lift motor rating at S3 15% (kW) 2.2 2.2 2.2 Battery according to DIN 43531/35/36 A,B,C,no no Battery voltage/rated capacity (V/Ah) 24/210 Battery weight (± 5%) (kg) 210 Power consumption according to VDI cycle (mm) 790/210/458 Others Type of drive control (AC Noise level at operator‘s ear (dB(A)) ≤75 Type of steering Electric
