- Description
-
Electric counterbalanced stacker(EGS12FD)
Product Features
1.Small volume and light weight, suitable for narrow channels, with high lifting, high load, and small turning radius;
2.Electronic power steering operating system, reduce the operating force on the steering wheel, make the steering light and flexible, reduce the fatigue of the driver;
3.Front axle drive, strong power, high efficiency, electric function to get more energy and greater braking torque, more powerful and efficient power, better acceleration performance, stronger climbing ability, to ensure that the car can still run smoothly on uneven road surface and slope;
4.The integrated AC controller with high frequency MOSFET provides superb flexibility and precise speed control. Excellent speed regulation performance,remarkable motor, electric control matching performance with regenerative braking, reverse braking, slope slide prevention and other functions, safe and reliable;
5.Side pull battery box design allows easy battery replacement, convenient for continuous operation.

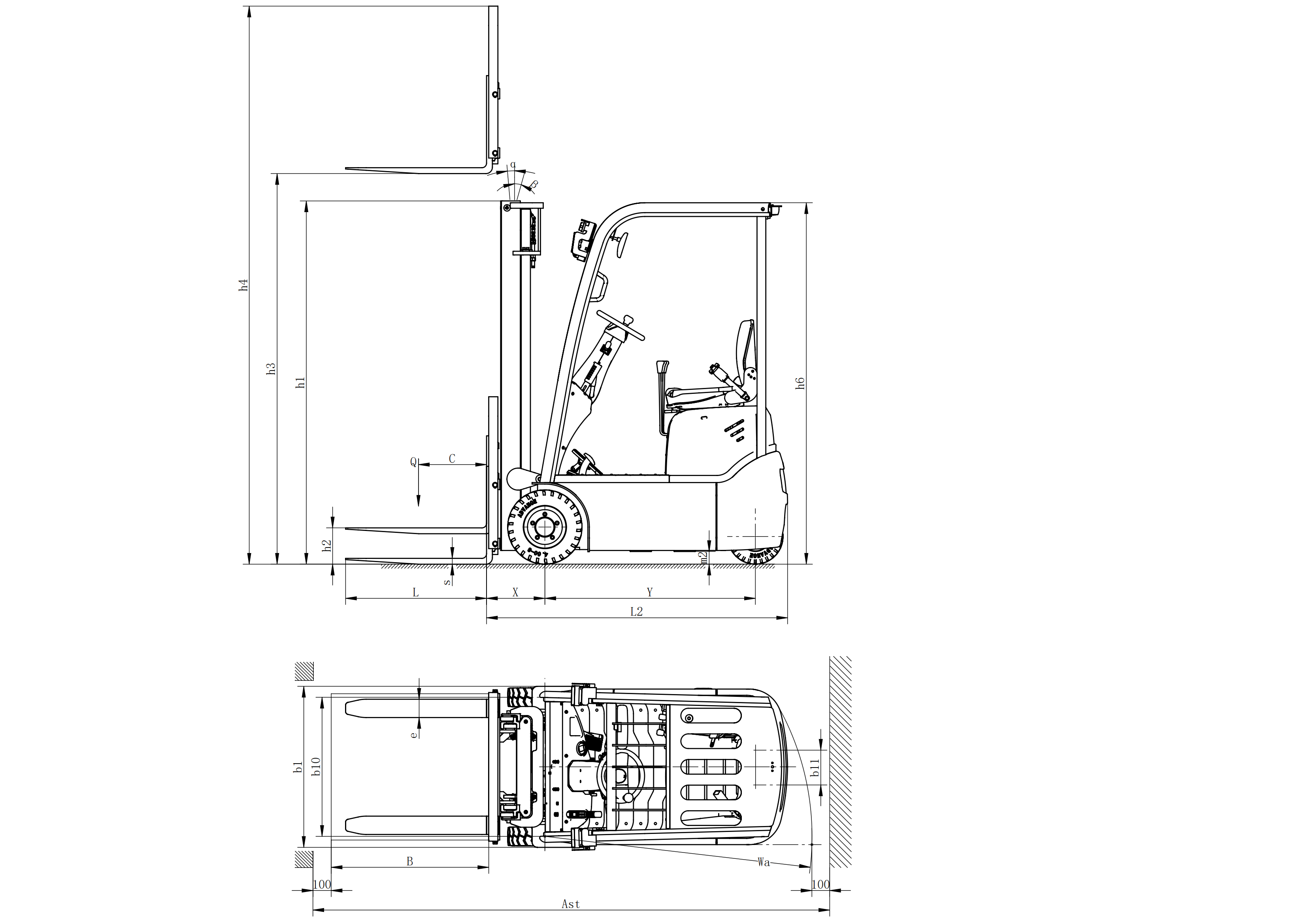

Characteristics Model EGS12FD Power unit Electric Operation Seated on Rated traction weight Q (t) 1.2 Load centre c (mm) 400 Axle centre to fork face x (mm) 319 Wheel base y (mm) 1150 Weights Service weight with battery kg 1945 Wheels/Tyres Wheels type Solid Driving wheel size 4.00-8 Bearing wheel size 3.50-5 Wheels, number front/rear (x = driven) 2×/2 Track width b10 (mm) 760 Track width b11 (mm) 185 Dimensions Mast/fork carriage tilt, forward/backward a/b (°) 5/8 Height of mast, lowered h1 (mm) 1985 Free lift h2 (mm) 0 Lift h3 (mm) 3000 Height of mast, extended h4 (mm) 3917 Height of overhead guard (cabin) h6 (mm) 1975 Height of seat/stand-on platform h7 (mm) 950 Overall length l1 (mm) 2415 Length to fork face l2 (mm) 1645 Overall width b1/ b2 (mm) 872/860 Fork dimensions s/e/l (mm) 32/100/770 Width of fork carriage b3 (mm) 800 Width of forks m1 (mm) 66 Min.Ground clearance m2 (mm) 69 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2945 Aisle width with pallet 800 x 1200 along forks Ast (mm) 3145 Min.Turning radius Wa (mm) 1425 Performance Travel speed,laden/unladen (km/h) 7/9 Lifting speed, with/without load (mm/s) 172/207 Lowering speed, with/without load (mm/s) 240/122 Climbing ability, with/without load (%) 10/15 Service brake Hydraulic Drive Drive motor, 60 minute rating (kW) 3.0 Lift motor rating at S3 15% (kW) 4.0 Battery voltage/rated capacity (V/Ah) 24/400 Battery weight (± 5%) (kg) 310 Power consumption according to VDI cycle (mm) 745/320/532 Others Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤70 Type of steering Electric
