- Description
-
Electric stacker(CL16/20GA series)
Product features
1.high power MOSFETS driver. High frequency, efficient, quiet, step less speed regulation and reverse braking function;
2. Advanced vertical AC drive system, motor can get more energy and greater brake torque, more powerful and efficient, accelerated performance is better;
3.The whole series is configured with a special gantry steel, great plasticity, strong anti-bending ability; high structural stability;
4.The whole series equipped with standard steering system, the assisted power is responsive and the handle is easy to operate；
5.The number of components required for the AC motor is little. There are no fragile components that need to be replaced regularly, almost no maintenance, it is more efficient and durable；
6.Equipped with side pull battery configuration, battery replacement is faster and more convenient , easier for continuous operation ，greatly improve work efficiency;
7.The standard configuration is lifting limit, when the fork rises to the top, the system automatically cuts off the uplink power supply, smooth parking, effective prevent the occurrence of "roof falling" accidents；

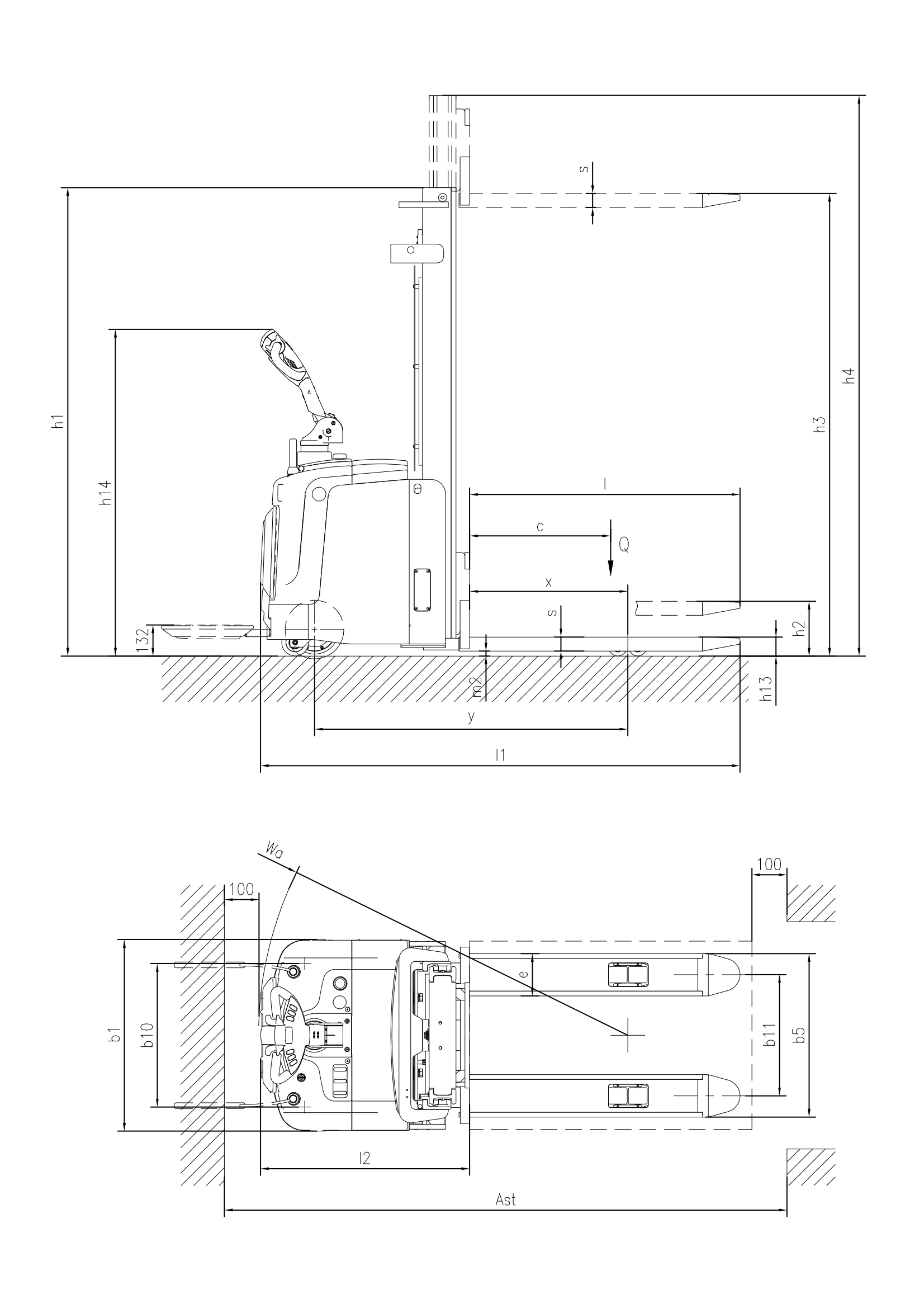

Characteristics Model CL1016GA CL1030GA CL036GA CL1616GA CL1630GA CL636GA CL2016GA CL2030GA CL2036GA Power unit Electric Operation Standing on Rated traction weight Q (t) 1 1.6 2.0 Load centre c (mm) 600 Axle centre to fork face x (mm) 673 Wheel base y (mm) 1332 Weights Service weight with battery kg 920 1030 1070 940 1065 1105 960 1090 1135 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ250×75 Bearing wheel size Φ×w(mm) Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ115×55 Wheels, number front/rear (x = driven) 1x+2/4 Track width b10 (mm) 580 Track width b11 (mm) 515/390 Dimensions Height of mast, lowered h1 (mm) 1990 1991 2291 1990 1991 2291 1990 1991 2291 Free lift h2 (mm) 166 Lift h3 (mm) 1600 3000 3600 1600 3000 3600 1600 3000 3600 Height of mast, extended h4 (mm) 1990 3408 4008 1990 3408 4008 1990 3408 4008 Height of seat/stand-on platform h7 (mm) 128 Overall height(With handle h14 (mm) 1063/1440 lowered hength h13 (mm) 85 Overall length l1 (mm) 2040 Length to fork face l2 (mm) 890 Overall width b1/ b2 (mm) 808 Fork dimensions s/e/l (mm) 60/180/1150 Width of forks b5 (mm) 570/695 Min.Ground clearance m2 (mm) 24 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2452 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2432 Min.Turning radius Wa (mm) 1570 Performance Travel speed,laden/unladen (km/h) 5.2/5.5 Lifting speed, with/without load (mm/s) 95/130 80/130 70/130 Lowering speed, with/without load (mm/s) 190/180 180/180 180/180 Maximum climbing ability, with/without load (%) 6/8 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.5 2.5 2.5 Lift motor rating at S3 15% (kW) 3 3 3 Battery voltage/rated capacity (V/Ah) 24/210 Battery weight (± 5%) (kg) 210 Other Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤70 Type of steering Electric
