- Description
-
Electric stacker(CL10/15 series)
Product features
1.The imported AC controller has stepless speed regulation, reverse braking function and short circuit protection function；
2.The emergency reverse switch is on the control handle, when the vehicle is out of control, it can prevent the operator being injured;
3.The standard equipment is the lifting, when the fork rises to the top, the system automatically cuts off the uplink power supply, smooth parking;
4.The standard equipment is the high cargo speed limiting device. When the mast rises a short distance from the bottom, the driving speed is automatically reduced to improve the safety of the operation;
5.Operating handle is equipped with turtle, low-speed control is more accurate;
6.When the door frame falls to the bottom position, the driving speed is automatically accelerated and the work efficiency is improved；

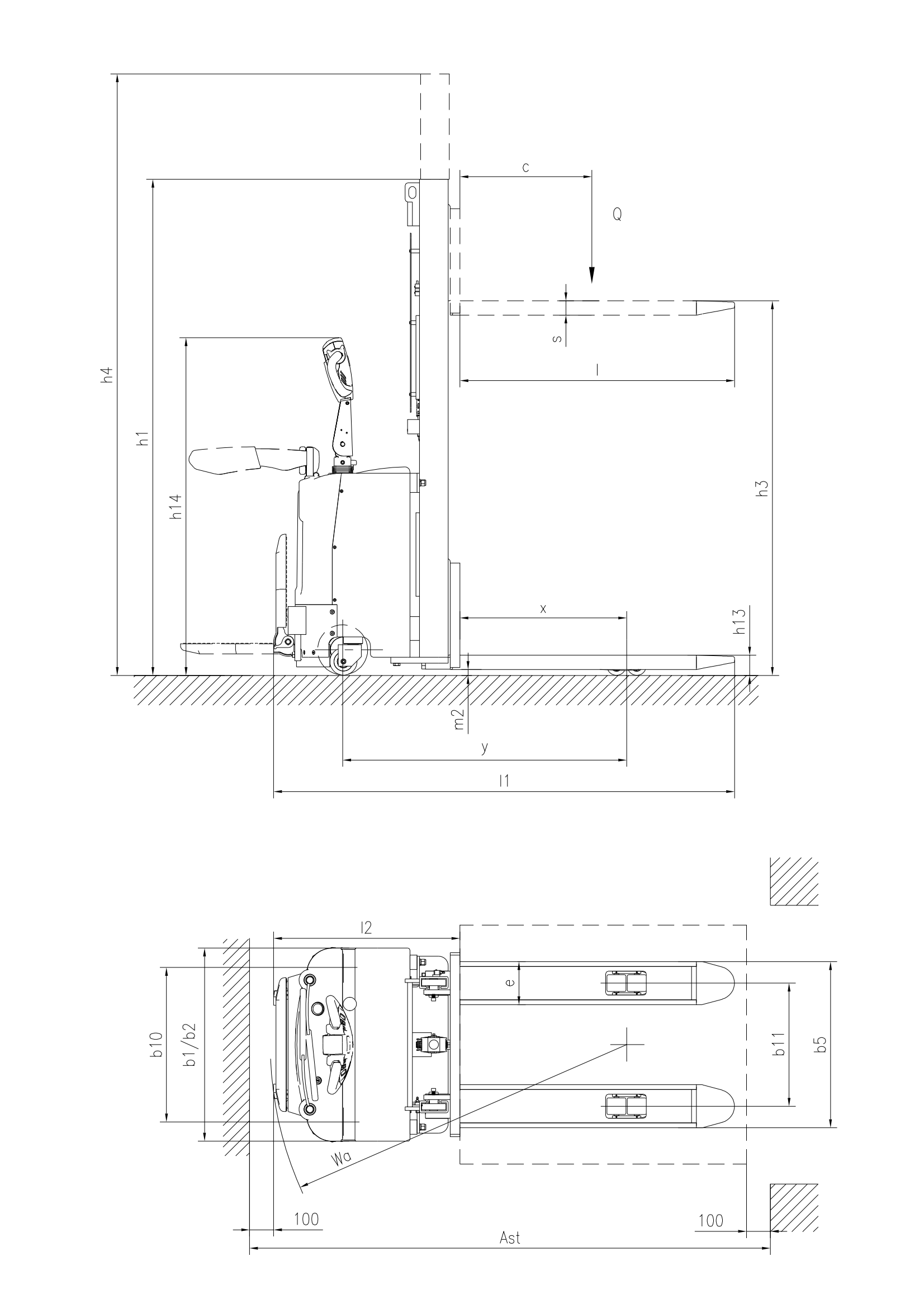

Characteristics Model CL1016 CL1026 CL1032 CL1036 CL1516 CL1526 CL1532 CL1536 Power unit Electric Operation Standing on Rated traction weight Q (t) 1 1.5 Load centre c (mm) 600 Axle centre to fork face x (mm) 675 Wheel base y (mm) 1190 Weights Service weight with battery kg 818 887 917 927 827 897 927 937 Wheels/Tyres Wheels type polyurethane Driving wheel size Φ×w(mm) Φ250×80 Bearing wheel size Φ×w(mm) Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ150×58 Wheels, number front/rear (x = driven) 1，4/2 Track width b10 (mm) 675 Track width b11 (mm) 390/515 Dimensions Free lift h1 (mm) 2077 1877 2127 2327 2077 1877 2127 2327 Height of mast, extended h3 (mm) 1600 2600 3200 3600 1600 2600 3200 3600 Height of seat/stand-on platform h4 (mm) 2077 3137 3687 4087 2077 3137 3687 4087 Overall height(With handle h14 (mm) 1040/1415 Lowered fork height h13 (mm) 86 Overall length l1 (mm) 1914 Length to fork face l2 (mm) 770 764 770 764 Overall width b1/ b2 (mm) 808 Fork dimensions s/e/l (mm) 60/180/1150 Width of forks b5 (mm) 570/695 Min.Ground clearance m2 (mm) 26 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2232 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2302 Min.Turning radius Wa (mm) 1460 Performance Travel speed,laden/unladen (km/h) 5.2/5.5 Lifting speed, with/without load (mm/s) 100/135 Lowering speed, with/without load (mm/s) 142/124 146/128 Maximum climbing ability, with/without load (%) 6/8 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.5 Lift motor rating at S3 15% (kW) 2.2 Battery voltage/rated capacity (V/Ah) 24/210 Battery weight (± 5%) (kg) 210 other Type of drive control AC Noise level at operator‘s ear (dB(A)) 67
