- Description
-
Electric double-lifting stacker(CL15/20GC series)
Product features
1.Advanced vertical AC drive system, more powerful and better acceleration performance, acceleration performance is better;
2.The standard equipment for the whole series is electronic power steering system, the assisted power is responsive and the handle is easy to operate;
3.Double lifting design, can carry two pallets at the same time, and there is a function of stacker;
4.Equipped with pressurized cylinder, fast speed, large output and low energy consumption to prevent slipping during heavy loading；
5.Compared with ordinary stackers, it has lifting legs which can better overcome obstacles such as ramps and uneven ground or other obstacles than the stacked car;
6.The standard equipment is the lifting limit, when the fork rises to the top, the system automatically cuts off the uplink power supply, smooth parking, effectively prevents the occurrence of “roof falling” accidents；

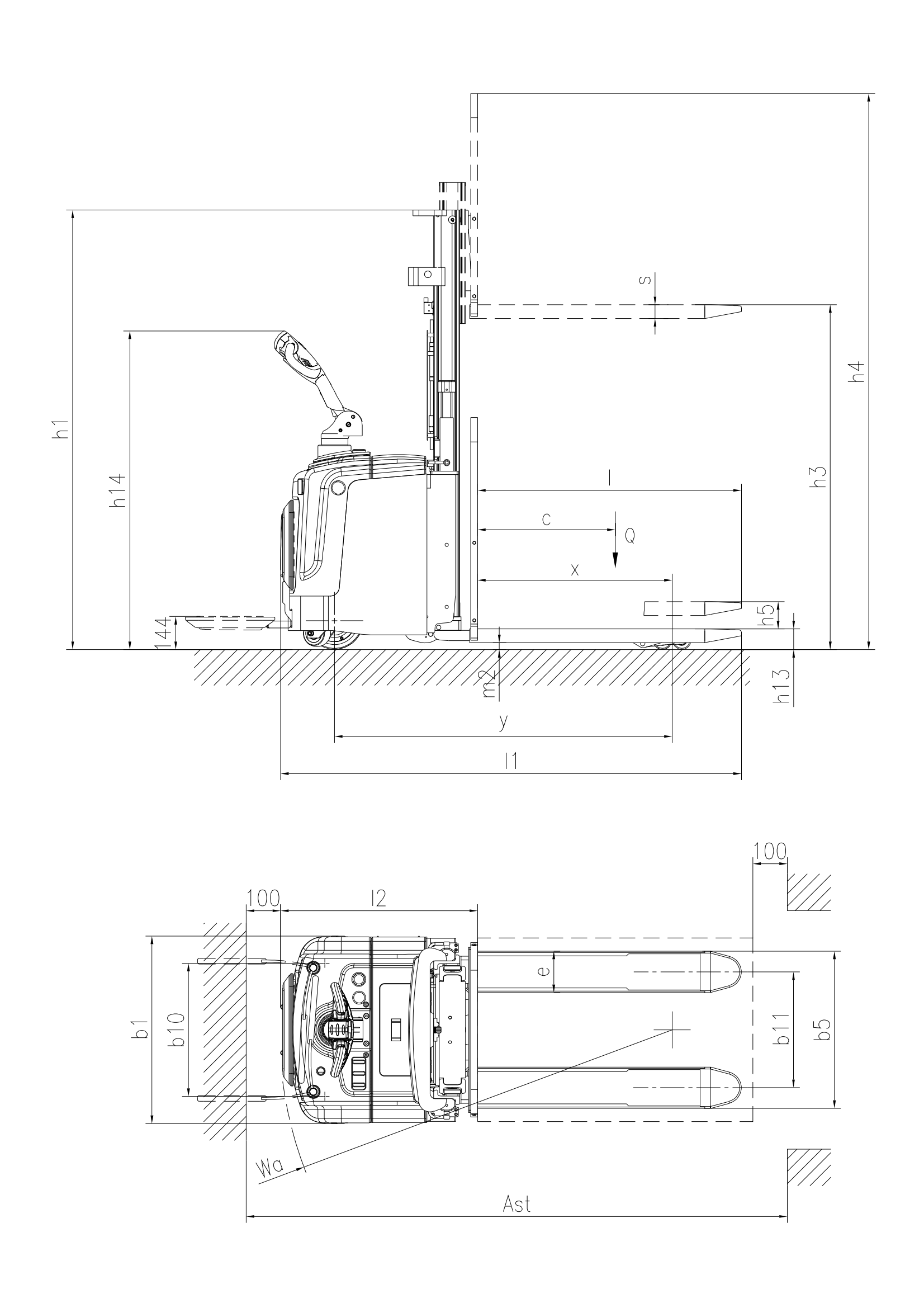

Characteristics Model CL1525GC CL1530GC CL1535GC CL1536GC CL2025GC CL2030GC CL2035GC CL2036GC Power unit Electric Operation Standing on Rated traction weight Q (kg) 1500 2000 Load capacity of the mast Q (kg) 1000 950 820 800 1200 1150 1020 1000 Load centre c (mm) 600 600 Axle centre to fork face x (mm) 848 848 Wheel base y (mm) 1472 1472 Weights Service weight with battery kg 1032 1072 1112 1120 1105 1145 1185 1190 Wheels/Tyres Wheels type polyurethane polyurethane Driving wheel size Φ×w(mm) Φ250×75 Φ250×75 Bearing wheel size Φ×w(mm) Φ80×70 Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ115×55 Φ115×55 Wheels, number front/rear (x = driven) 1x，2/4 1x，2/4 Track width b10 (mm) 580 580 Track width b11 (mm) 505/390 505/390 Dimensions Height of mast, lowered h1 (mm) 1799 2049 2299 2349 1799 2049 2299 2349 Lift h3 (mm) 2530 3030 3530 3630 2530 3030 3530 3630 Height of mast, extended h4 (mm) 2943 3443 3943 4043 2943 3443 3943 4043 The initial boost h5 (mm) 120 120 Overall height(With handle h14 (mm) 1065/1365 1065/1365 Lowered height h13 (mm) 90 90 Overall length l1 (mm) 2000 2000 Length to fork face l2 (mm) 850 850 Overall width b1/ b2 (mm) 808 808 Fork dimensions s/e/l (mm) 60/180/1150 60/180/1150 Width of forks b5 (mm) 685/570 685/570 Min.Ground clearance m2 (mm) 28 28 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2530 2530 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2443 2443 Min.Turning radius Wa (mm) 1710 1710 Performance Travel speed,laden/unladen (km/h) 5.2/5.5 5.2/5.5 Lifting speed, with/without load (mm/s) 100/130 100/130 Lowering speed, with/without load (mm/s) 180/140 180/140 Maximum climbing ability, with/without load (%) 6/8 6/8 Service brake Electromagnetic Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.5 2.5 Lift motor rating at S3 15% (kW) 2.2 2.2 Battery voltage/rated capacity (V/Ah) 24/210 24/210 Battery weight (± 5%) (kg) 190 190 other Type of drive control AC AC Noise level at operator‘s ear (dB(A)) ≤70 ≤70
