- Description
-
Electric pallet truck（SL20GE）
Product Features
1.Imported AC controller，Germany ZF vertical gearbox;
2.Strong effective AC drive systems offer superior acceleration performance, improve job efficiency, and save energy;
3.Unique long handle operation, easy and flexible;
4.The balance wheel on both sides ensures higher stability of the vehicle and prevents the ground from being damaged;
5.The battery case cover and mask had grooves which can place tools, water cups and other items, more humane;

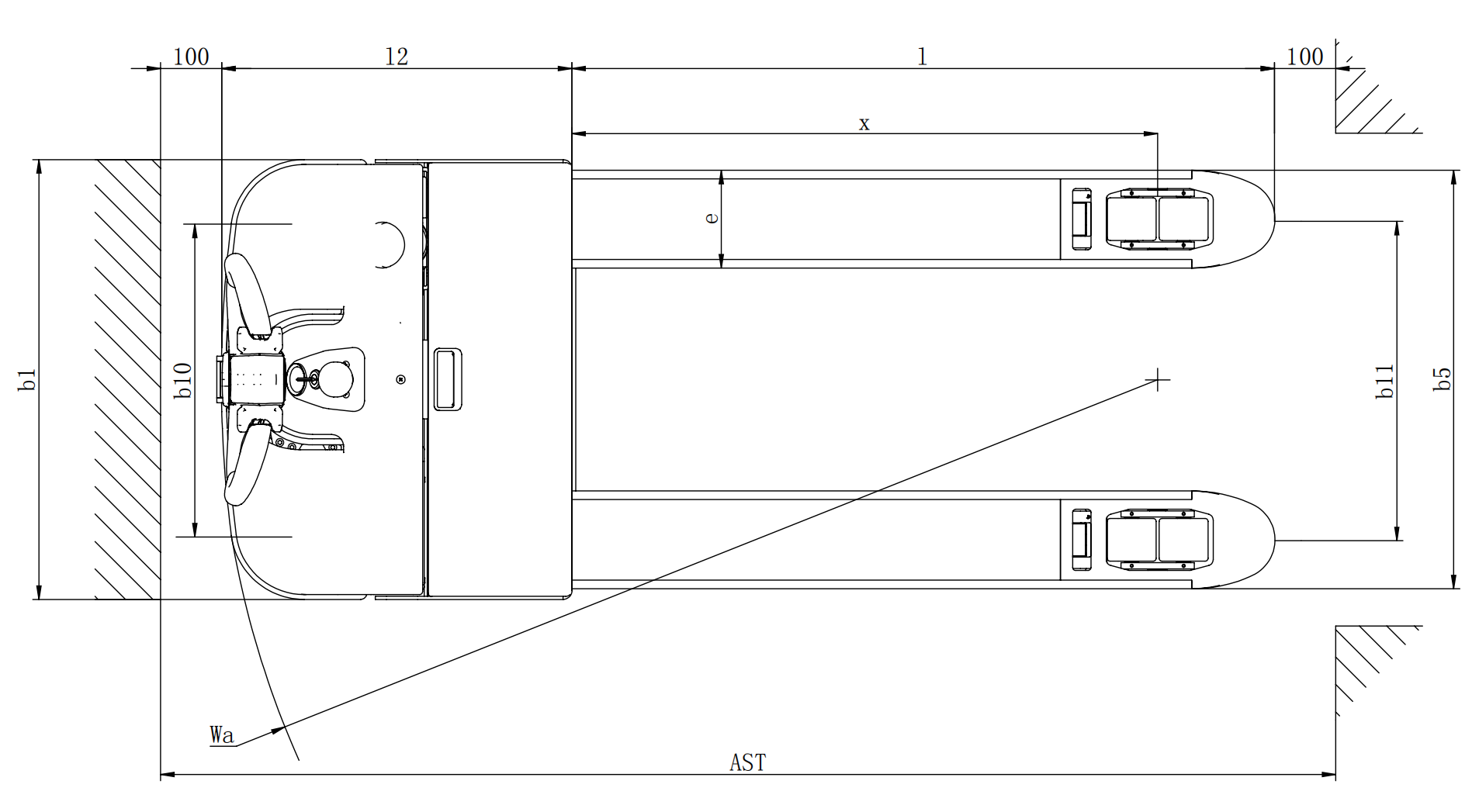

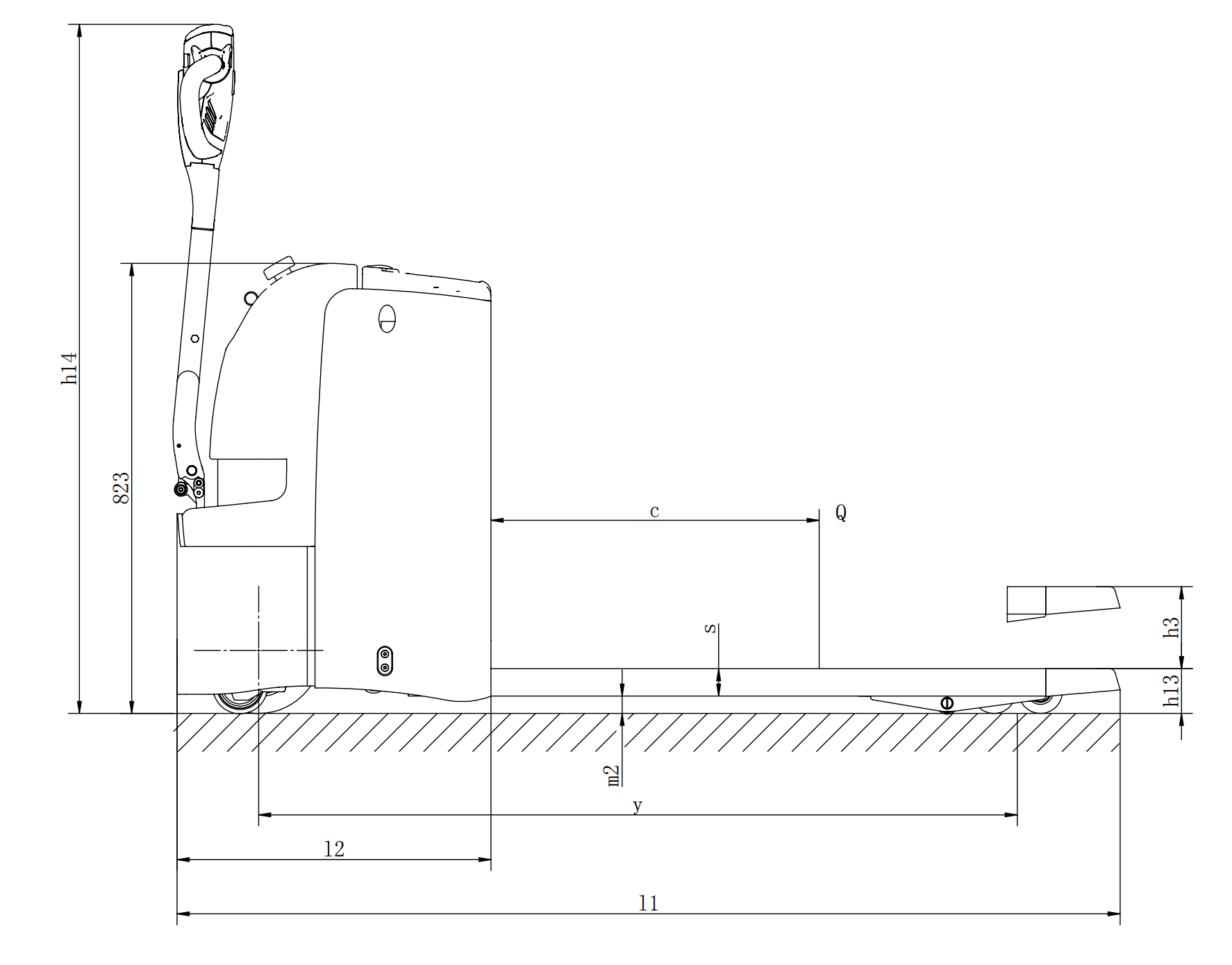

Characteristics Model SL20GE Power unit Electric Operation Pedestrian Rated traction weight Q (t) 2.0 Load centre c (mm) 600 Axle centre to fork face x (mm) 962 Wheel base y (mm) 1388 Weights Service weight with battery kg 520 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ230×75 Bearing wheel size Φ×w(mm) Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ100×40 Wheels, number front/rear (x = driven) 1x+2/4 Track width b11 (mm) 390/525 Dimensions Lift h3 (mm) 200 Overall height(With handle h14 (mm) 825/1278 lowered hength h13 (mm) 85 Overall length l1 (mm) 1742 Length to fork face l2 (mm) 592 Overall width b1/ b2 (mm) 700 Fork dimensions s/e/l (mm) 50/160/1150 Width of forks b5 (mm) 550/685 Min.Ground clearance m2 (mm) 35 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 1944 Aisle width with pallet 800 x 1200 along forks Ast (mm) 1994 Min.Turning radius Wa (mm) 1556 Performance Travel speed,laden/unladen (km/h) 4.2/4.5 Lifting speed, with/without load (mm/s) 21/27 Lowering speed, with/without load (mm/s) 38/38 Maximum climbing ability, with/without load (%) 8/15 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.3 Lift motor rating at S3 15% (kW) 0.8 Battery according to DIN 43531/35/36 A,B,C,no no Battery voltage/rated capacity (V/Ah) 24/210 Battery weight (± 5%) (kg) 195 Others Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤70 Type of steering Mechanical
