- Description
-
Electric pallet truck（SL20GH）
Product Features
1.The vehicle is simple, agile, stable and easy to operate. Compact structure, small turning radius. Low noise, high performance;
2.The auxiliary wheels on both sides increase the driving stability and are standard equipped with stability. The standard equipment is the lifting power limit. When the forks rise to the top, the system will automatically cut off the lifting power and stop the car smoothly;
3.The operation handle is lengthened for walking vehicle, which conforms to ergonomic principle and is comfortable to operate;
4.The front panel of the body box is equipped with opening device, which can quickly check the faults of the oil cylinder and oil pipe;

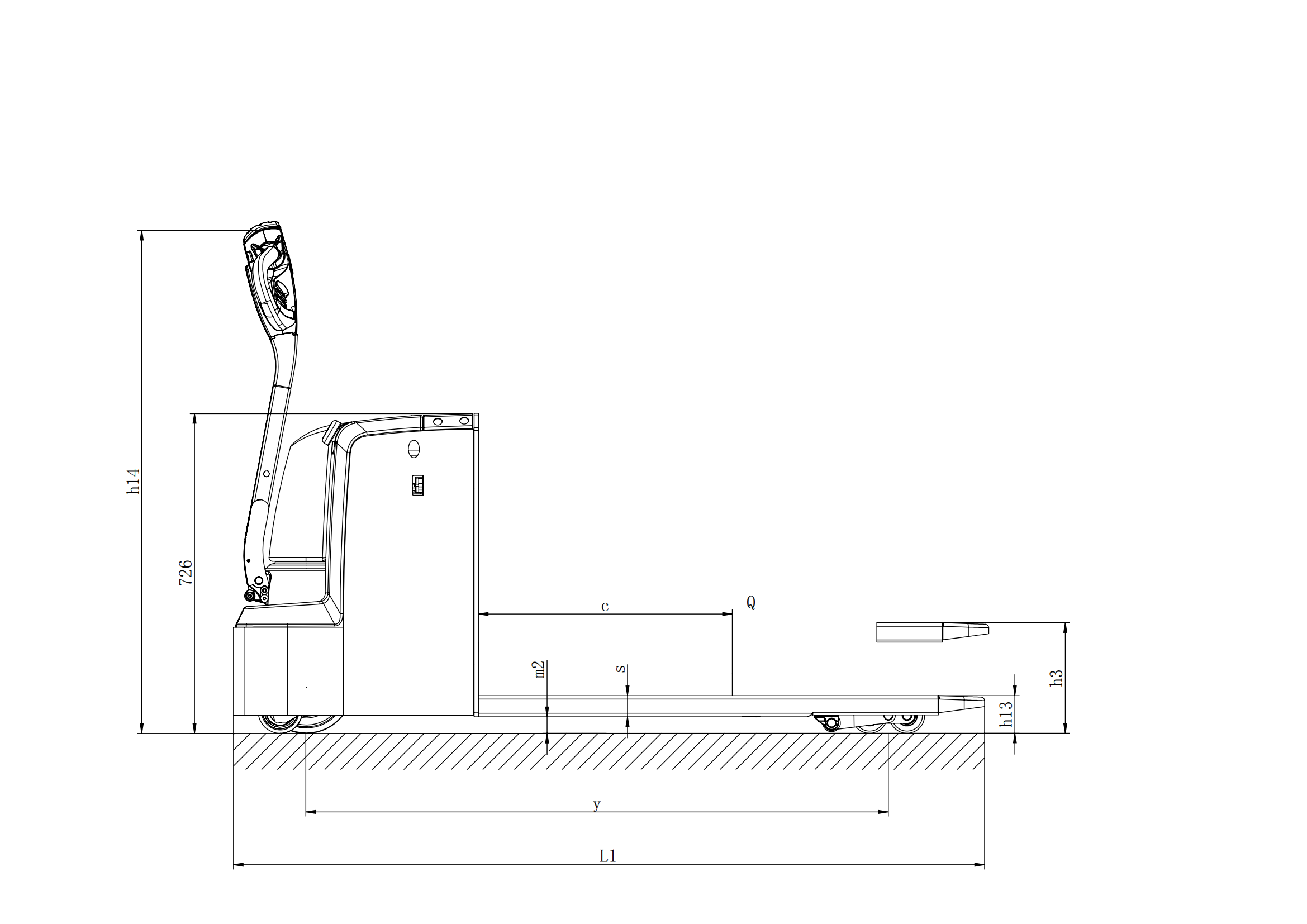

Characteristics Model SL20GH SL20GHS Power unit Electric Electric Operation Pedestrian Pedestrian Rated traction weight Q (t) 2 2 Load centre c (mm) 600 600 Axle centre to fork face x (mm) 931 931 Wheel base y (mm) 1324 1324 Weights Service weight with battery kg 333 333 Wheels/Tyres Wheels type PU PU Driving wheel size Φ×w(mm) Φ210×70 Φ210×70 Bearing wheel size Φ×w(mm) Φ80×70 Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ100×40 Φ100×40 Wheels, number front/rear (x = driven) 1x+2/4 1x+2/4 Track width b11 (mm) 380/525 380/525 Dimensions Lift h3 (mm) 200 200 Overall height(With handle h14 (mm) 730/1165 730/1165 lowered hength h13 (mm) 85 85 Overall length l1 (mm) 1708 1708 Length to fork face l2 (mm) 558 558 Overall width b1/ b2 (mm) 700 700 Fork dimensions s/e/l (mm) 50/160/1150 50/160/1150 Width of forks b5 (mm) 540/685 540/685 Min.Ground clearance m2 (mm) 35 35 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 1909 1909 Aisle width with pallet 800 x 1200 along forks Ast (mm) 1959 1959 Min.Turning radius Wa (mm) 1490 1490 Performance Travel speed,laden/unladen (km/h) 4.2/4.5 5.2/5.5 Lifting speed, with/without load (mm/s) 20/26 20/26 Lowering speed, with/without load (mm/s) 33/21 33/21 Maximum climbing ability, with/without load (%) 3/10 8/15 Service brake Electromagnetic Electromagnetic Drive Drive motor, 60 minute rating (kW) 0.75 0.75 Lift motor rating at S3 15% (kW) 0.8 0.8 Battery voltage/rated capacity (V/Ah) 2×12/100 2×12/100 Battery weight (± 5%) (kg) 54 54 Others Type of drive control DC DC Noise level at operator‘s ear (dB(A)) ≤70 ≤70 Type of steering Mechanical Mechanical
