- Description
-
Electric pallet truck（SL30S7）
Product Features
1.The vehicle size is small, the turning radius is small, and it can carry out handling work in a narrow space；
2.Easy disassembly of battery baffle, convenient replacement of battery longer time, higher efficiency；
3.The strong metal cover protects the motor and wheels, and also reliably protects the operator's feet to improve safety；
4.Back anti-collision switch, driving brake adopts electromagnetic braking and motor braking dual protection, fully considering the operator's driving safety;
5.Built-in charger for customer convenience；
6.Efficient 48V DC drive unit is powerful and equipped with electromagnetic braking system to improve the safety of the vehicle；
7.Operating handle equipped with high quality pneumatic spring, release the handle, automatic slow reset, durable;
8.Operation handle is equipped with turtle speed switch, speed control is more accurate;

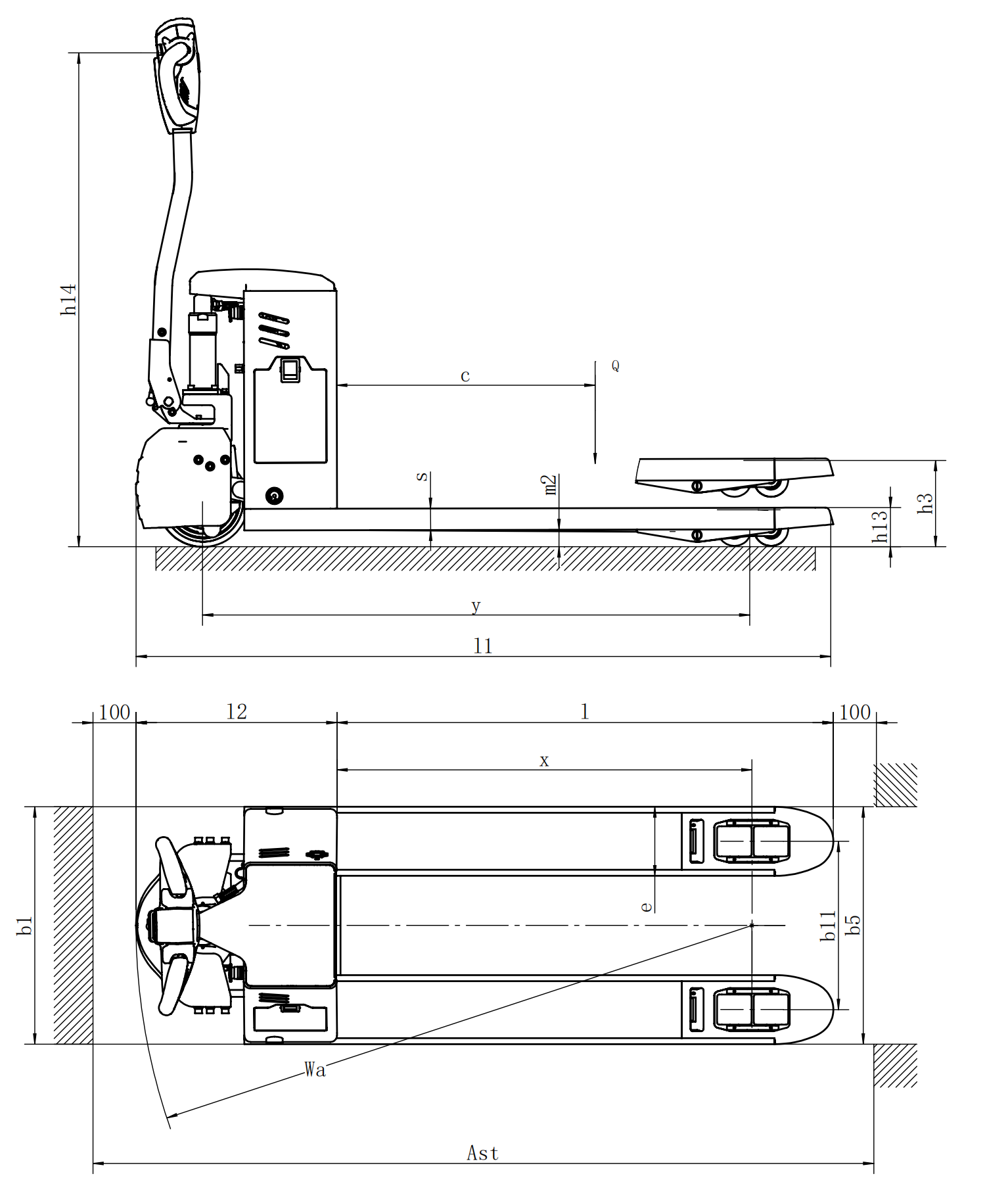

Characteristics Model SL30S7 Power unit Electric Operation Pedestrian Rated traction weight Q (kg) 3000 Load centre c (mm) 600 Axle centre to fork face x (mm) 962 Wheel base y (mm) 1269 Weights Service weight with battery kg 220 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ210×70 Bearing wheel size Φ×w(mm) Φ80×70 Wheels, number front/rear (x = driven) 1x/4 Track width b11 (mm) 390/525 Dimensions Lift h3 (mm) 200 Overall height(With handle h14 (mm) 725/1145 lowered hength h13 (mm) 85 Overall length l1 (mm) 1610 Length to fork face l2 (mm) 460 Overall width b1/ b2 (mm) 550/685 Fork dimensions s/e/l (mm) 50/160/1150 Width of forks b5 (mm) 550/685 Min.Ground clearance m2 (mm) 35 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 1810 Aisle width with pallet 800 x 1200 along forks Ast (mm) 1860 Min.Turning radius Wa (mm) 1422 Performance Travel speed,laden/unladen (km/h) 4.2/4.5 Maximum climbing ability, with/without load (%) 6/15 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.2 Lift motor rating at S3 15% (kW) 0.8 Battery voltage/rated capacity (V/Ah) 4*12/25 Battery weight (± 5%) (kg) 10.1*2 Others Type of drive control DC Noise level at operator‘s ear (dB(A)) ≤70 Type of steering Mechanical
