- Description
-
Electric stacker(CL16QD series)
Product features
1.The whole series equipped with standard，The power response is keen, the handle is operated freely, and the labor intensity of the operator is reduced. The steering is light at low speed, stable at high speed, more intelligent in steering, precise in handling, and smooth in driving;
2.High performance battery, cycle performance, and deep discharge recovery ability is great, superior battery life, long service life;
3.Configured protective arm on both sides of the driving position to protect the operator security;
4.The center of the drive system sets a floating bracket to ensure the stability of the vehicle operation, and the vehicle is smooth and stable while driving;
5.The pedal foot feels comfortable, 64 pieces of butterfly shrapnel can quickly absorb the vibration generated by the vehicle, alleviate the impact of the road surface; the number of components required for the AC motor is little. There are no fragile components that need to be replaced regularly, almost no maintenance, it is more efficient and durable;

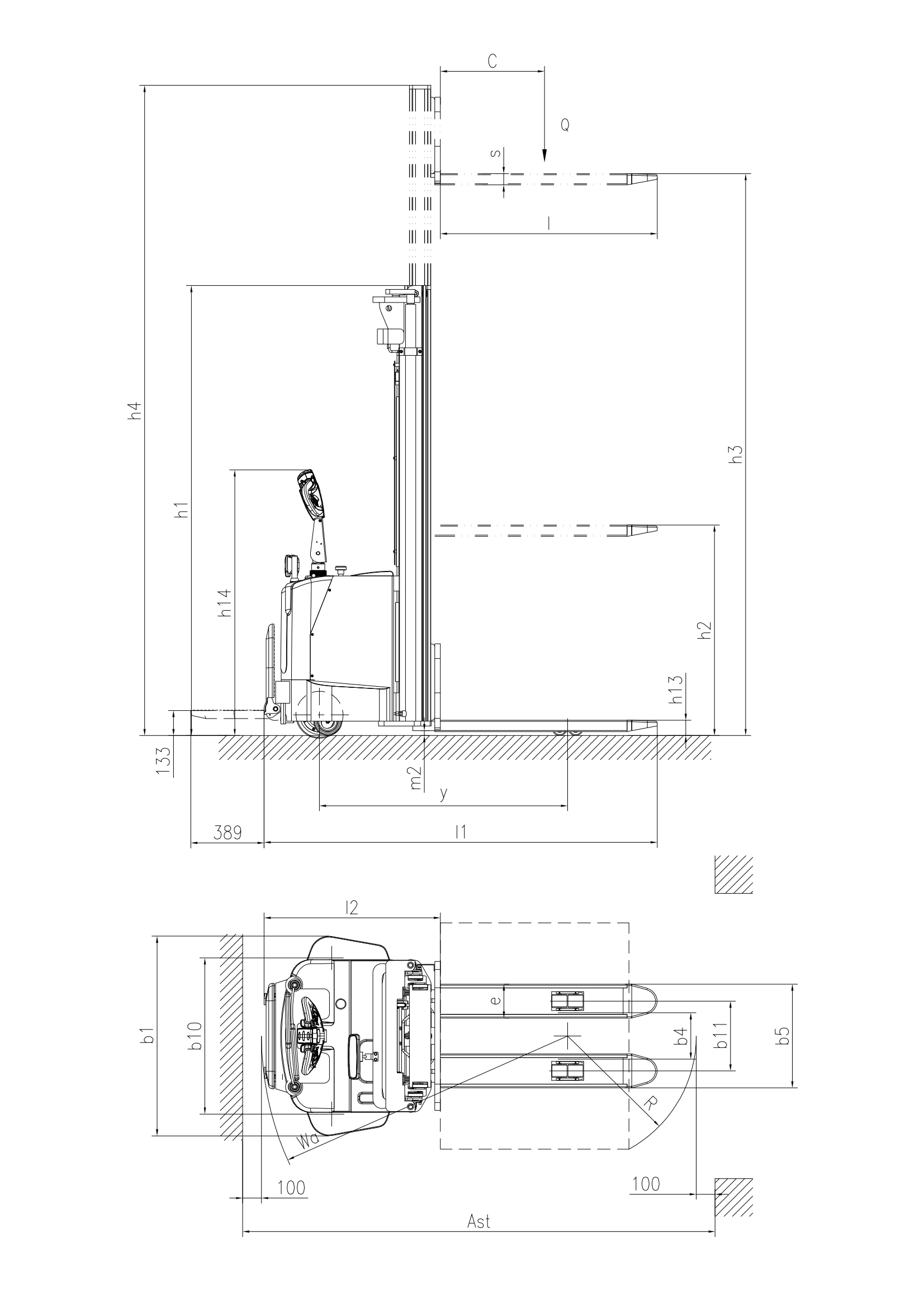

Characteristics Model CL1545QD CL1555QD Power unit Electric Operation Standing on Rated traction weight Q (kg) 1500 Load centre c (mm) 600 Axle centre to fork face x (mm) 675 Wheel base y (mm) 1325 Weights Service weight with battery kg 1260 1340 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ250×75 Bearing wheel size Φ×w(mm) Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ150×58 Wheels, number front/rear (x = driven) 1，4/2 Track width b10 (mm) 828 Track width b11 (mm) 390/515 Dimensions Free lift h1 (mm) 2054 2386 Lift h2 (mm) 1561 1894 Height of mast, extended h3 (mm) 4500 5500 Height of seat/stand-on platform h4 (mm) 5060 6060 Overall height(With handle h14 (mm) 1160/1310 Lowered fork height h13 (mm) 86 Overall length l1 (mm) 2085 Length to fork face l2 (mm) 925 Overall width b1/ b2 (mm) 1060 Fork dimensions s/e/l (mm) 60/180/1150 Width of forks b5 (mm) 570/695 Min.Ground clearance m2 (mm) 26 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2503 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2480 Min.Turning radius Wa (mm) 1620 Performance Travel speed,laden/unladen (km/h) 5.2/5.5 Lifting speed, with/without load (mm/s) 108/147 Lowering speed, with/without load (mm/s) 175/110 Maximum climbing ability, with/without load (%) 6/8 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.5 Lift motor rating at S3 15% (kW) 3.0 Battery voltage/rated capacity (V/Ah) 24/240 Battery weight (± 5%) (kg) 240 Others Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤70
