- Description
-
Electric stacker(CL20 series)
Product features
1.The imported AC controller has stepless speed regulation, reverse braking function and short circuit protection function.
2.High performance storage batteries, cycle performance and deep discharge recovery ability is great, superior battery life, long service life;
3.The main frame uses 12 # tank steel, ultra-high strength body, ensuring the stability of the heavy-duty stacker;
4.With power off brake function, when the vehicle is out of control or on the ramp, this function is particularly practical, safer and more reliable. the standard configuration is lifting , when the forks rise to the top, the system will automatically cut off the power supply, park stably ;
5.The controller has self-diagnosis function, the fault code can be displayed after the hand-held unit is connected with the controller, and the fault can be checked quickly and accurately;

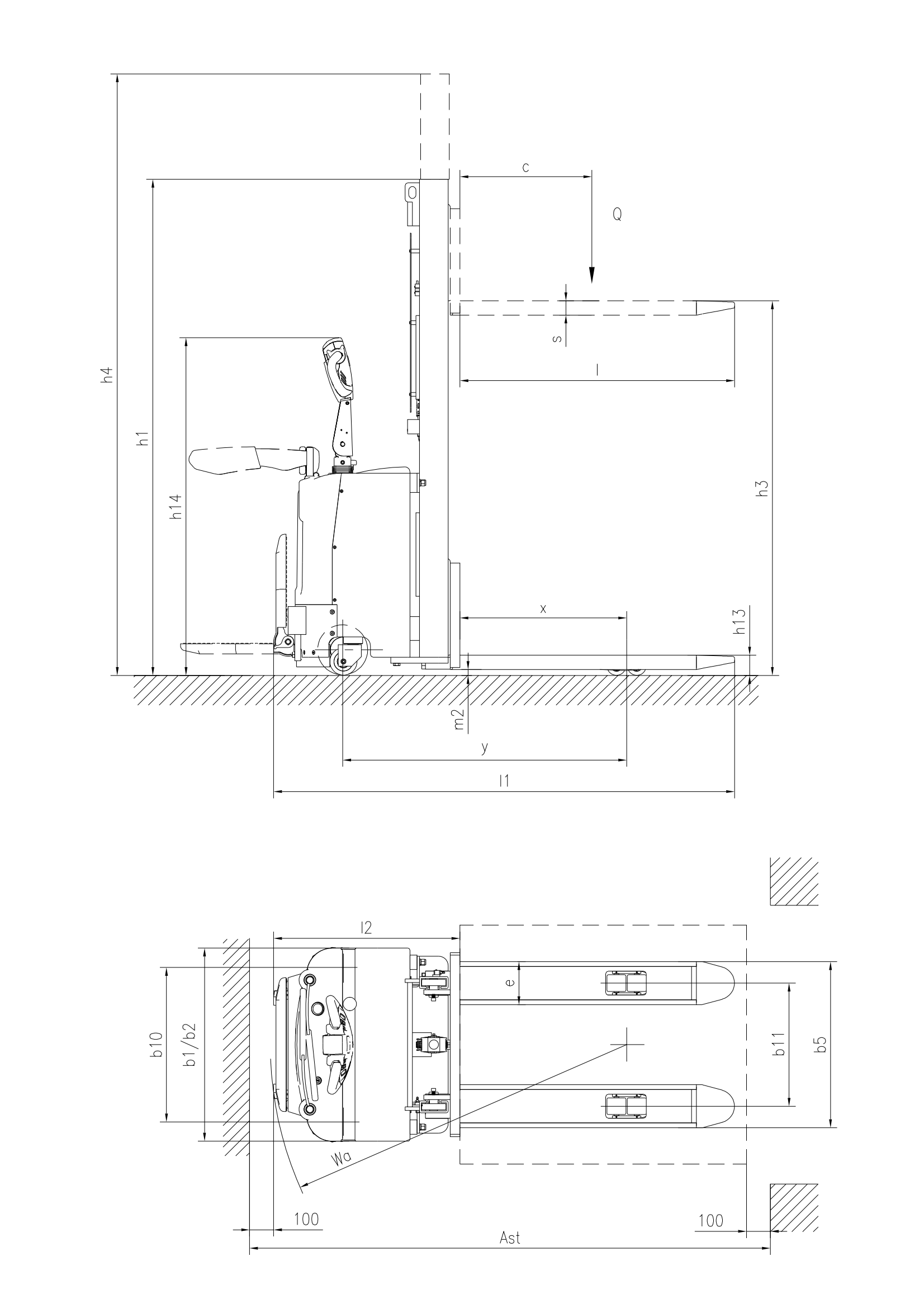

Characteristics Model CL2016A CL2026A CL2032A CL2036A CL2026B CL2032B CL2032B Power unit Electric Operation Standing on Rated traction weight Q (t) 2 Load centre c (mm) 600 Axle centre to fork face x (mm) 675 Wheel base y (mm) 1180 Weights Service weight with battery kg 847 937 967 1007 1032 1040 1057 Wheels/Tyres Wheels type polyurethane Driving wheel size Φ×w(mm) Φ250×80 Bearing wheel size Φ×w(mm) Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ150×58 Wheels, number front/rear (x = driven) 1，4/2 Track width b10 (mm) 675 Track width b11 (mm) 390/515 Dimensions Free lift h1 (mm) 2077 1877 2127 2327 1862 2162 2362 Height of mast, extended h3 (mm) 1600 2600 3200 3600 2600 3200 3600 Height of seat/stand-on platform h4 (mm) 2077 3137 3687 4087 3232 3732 4132 Overall height(With handle h14 (mm) 1040/1415 Lowered fork height h13 (mm) 86 Overall length l1 (mm) 1955 Length to fork face l2 (mm) 770 764 Overall width b1/ b2 (mm) 808 Fork dimensions s/e/l (mm) 60/180/1150 Width of forks b5 (mm) 570/695 Min.Ground clearance m2 (mm) 26 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2380 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2360 Min.Turning radius Wa (mm) 1495 Performance Travel speed,laden/unladen (km/h) 5.2/5.5 Lifting speed, with/without load (mm/s) 90/110 71/108 Lowering speed, with/without load (mm/s) 150/140 110/70 Maximum climbing ability, with/without load (%) 6/8 Service brake electromagnetic Drive Drive motor, 60 minute rating (kW) 1.5 Lift motor rating at S3 15% (kW) 3 Battery voltage/rated capacity (V/Ah) 24/210 Battery weight (± 5%) (kg) 190 Other Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤70
