- Description
-
Electric stacker （CL16GE series）
Product features
1.Powerful AC motor and ZF Friedrichshafen transmission provides... Improves work efficiency and saves energy;
2.German original imported waterproof micro switch,dusty and other harsh environments;
3.The mast uses 12 # tank steel, increasing the strength of the vehicle body, ensuring the stability of high and heavy lifting;
4.Key switches and electricity meter are integrated on the operating handle and makes operation easier;
5.The operating handle has up and down buttons on both sides of the handle, which is very convenient;
6.The operation handle is extended for walking vehicles, which is in line with ergonomic principles, comfortable operation;
7.Installed high-density wire protective net, braided and welded, strong and durable, excellent protection effect;

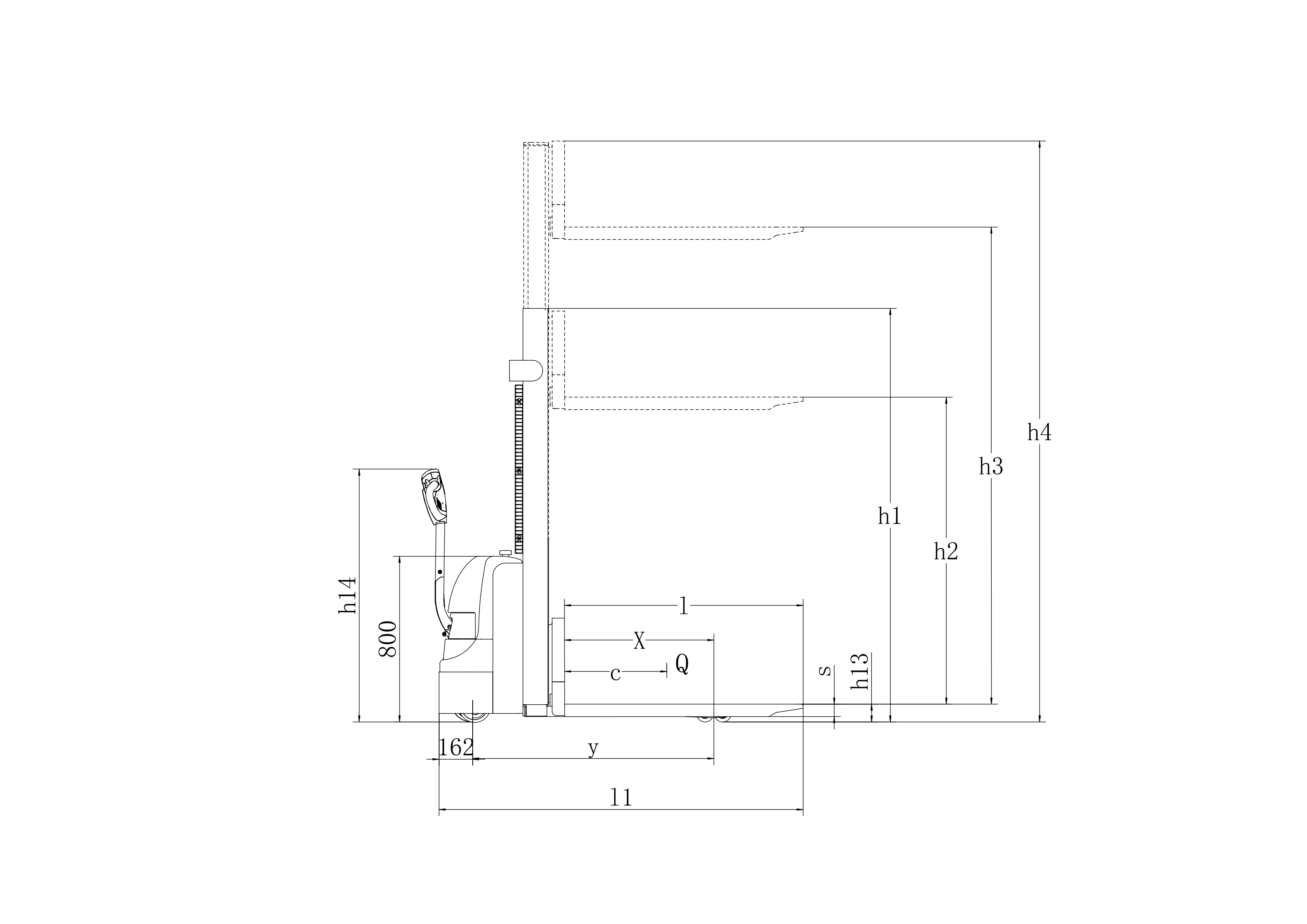

Characteristics Model CL1630GE Power unit Electric Operation Pedestrian Rated traction weight Q (t) 1.6 Load centre c (mm) 600 Axle centre to fork face x (mm) 675 Wheel base y (mm) 1118 Weights Service weight with battery kg 672 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ230×75 Bearing wheel size Φ×w(mm) Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ150×58 Wheels, number front/rear (x = driven) 1x+1/4 Track width b10 (mm) 526 Track width b11 (mm) 390/515 Dimensions Height of mast, lowered h1 (mm) 1995 Free lift h2 (mm) 0 Lift h3 (mm) 3000 Height of mast, extended h4 (mm) 3424 Overall height(With handle h14 (mm) 870/1200 Lowered fork height h13 (mm) 86 Overall length l1 (mm) 1755 Length to fork face l2 (mm) 605 Overall width b1/ b2 (mm) 795 Fork dimensions s/e/l (mm) 60/180/1150 Width of forks b5 (mm) 570/695 Min.Ground clearance m2 (mm) 26 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2178 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2156 Min.Turning radius Wa (mm) 1295 Performance Travel speed,laden/unladen (km/h) 4.0/4.2 Lifting speed, with/without load (mm/s) 92/136 Lowering speed, with/without load (mm/s) 112/98 Maximum climbing ability, with/without load (%) 6/10 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.5 Lift motor rating at S3 15% (kW) 2.2 Battery voltage/rated capacity (V/Ah) 2×12/120 Battery weight (± 5%) (kg) 2×34 Others Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤70 Type of steering Mechanical
