- Description
-
Electric stacker(CL20GF series)
Product features
1.Powerful AC motor and ZF Friedrichshafen transmission provides；superior acceleration performance， improves work efficiency, and saves energy;
2.High power MOSFETS driver, high frequency, efficient, quiet, has stepless speed regulation and reverse braking function； Improved temperature protection and compensation functions to achieve thermal protection and stable output;
3. Key switch and electric meter, horn, up and down button, turtle speed switch are integrated in the operation handle, easy to operate;
4.The operation handle is extended for walking vehicles, in line with ergonomic principles, comfortable operation;
5.Side drive design, effectively reduce the operation channel, small turn radius, better field of view, suitable for narrow space operations；

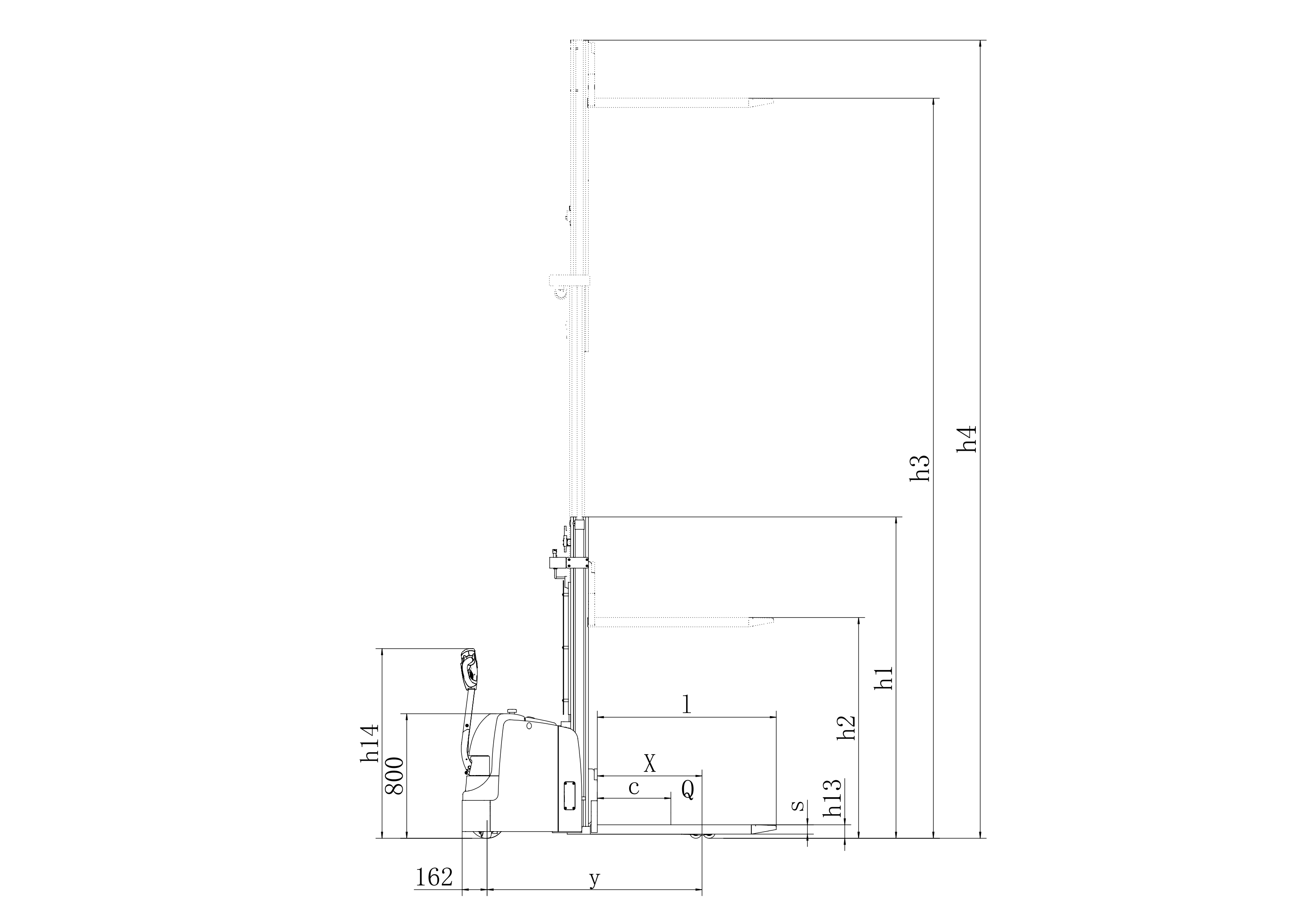

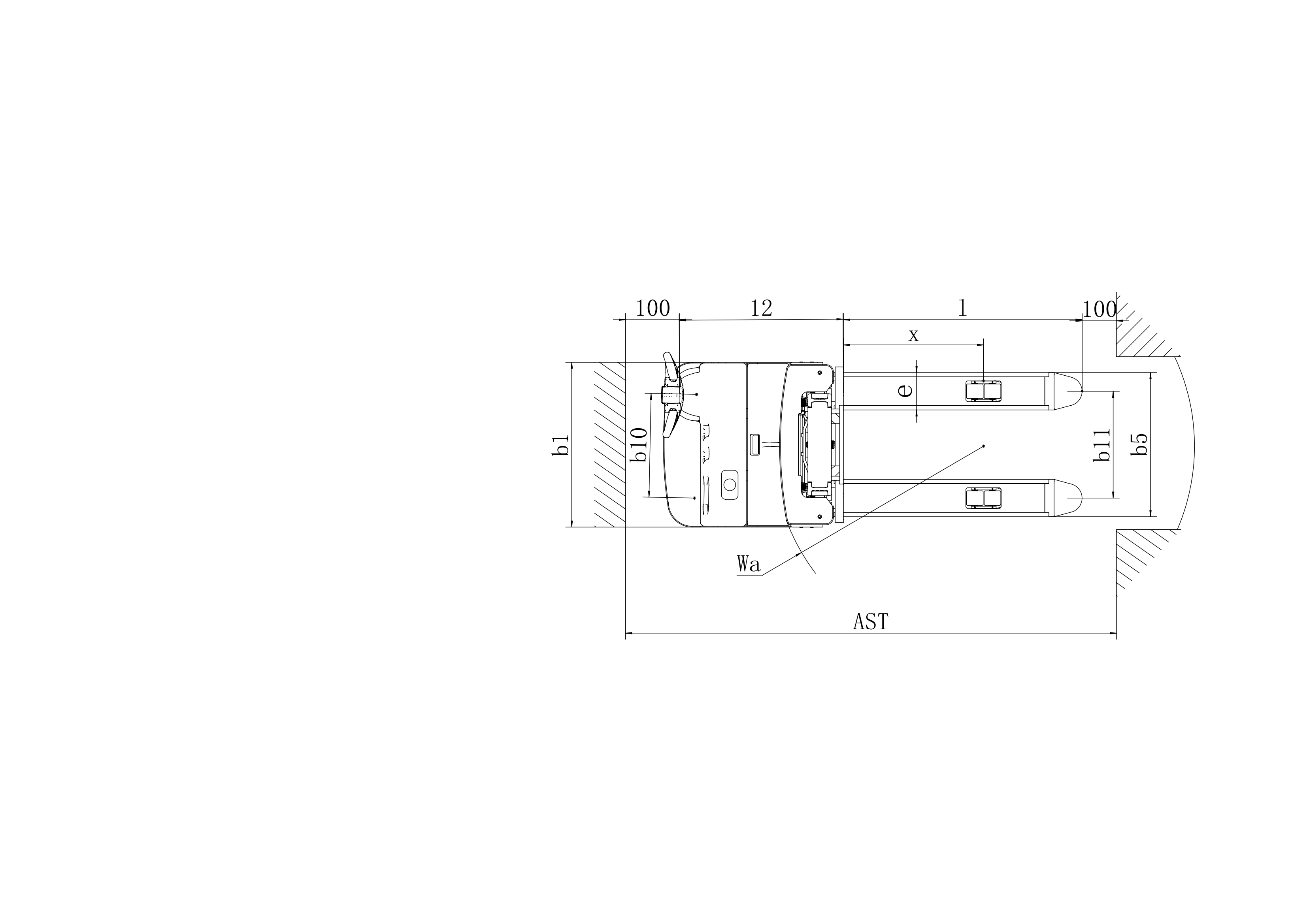

Characteristics Model CL2030GF Power unit Electric Operation Pedestrian Rated traction weight Q (t) 2.0 Load centre c (mm) 600 Axle centre to fork face x (mm) 672 Wheel base y (mm) 1384 Weights Service weight with battery kg 966 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ230×75 Bearing wheel size Φ×w(mm) Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ150×58 Wheels, number front/rear (x = driven) 1x+1/4 Track width b10 (mm) 526 Track width b11 (mm) 390/515 Dimensions Height of mast, lowered h1 (mm) 1991 Free lift h2 (mm) 166 Lift h3 (mm) 3000 Height of mast, extended h4 (mm) 3408 Overall height(With handle h14 (mm) 870/1200 lowered hength h13 (mm) 86 Overall length l1 (mm) 2022 Length to fork face l2 (mm) 872 Overall width b1/ b2 (mm) 795 Fork dimensions s/e/l (mm) 60/180/1150 Width of forks b5 (mm) 570/695 Min.Ground clearance m2 (mm) 26 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2435 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2412 Min.Turning radius Wa (mm) 1550 Performance Travel speed,laden/unladen (km/h) 4.0/4.2 Lifting speed, with/without load (mm/s) 80/210 Lowering speed, with/without load (mm/s) 152/160 Maximum climbing ability, with/without load (%) 4/10 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.5 Lift motor rating at S3 15% (kW) 3.0 Battery voltage/rated capacity (V/Ah) 24/210 Battery weight (± 5%) (kg) 195 Others Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤70 Type of steering Mechanical
