- Description
-
Electric stacker （CL13GHY series）
Product features
1.Reinforcing ribs are set between the internal and external masts to ensure that the mast will not tilt forward when the load is raised, and the vehicle stability is better;
2.German original imported waterproof micro switch,dusty and other harsh environments;
3.Key switch, electric meter, up and down button, turtle speed switch are integrated in the operation handle, easy to operate;
4.The handle is equipped with a high quality air pressure spring. Releasing the handle will automatically reset slowly;
5.The operation handle is extended for walking vehicles, in line with ergonomic principles, comfortable operation;
6.The middle engine drive effectively prevents the driving wheel from slipping ;
7.Maintenance-free batteries do not need to be replaced with other tools, more convenient;
8.Adjustable wide leg design, suitable for variety of pallet sizes, more stable;

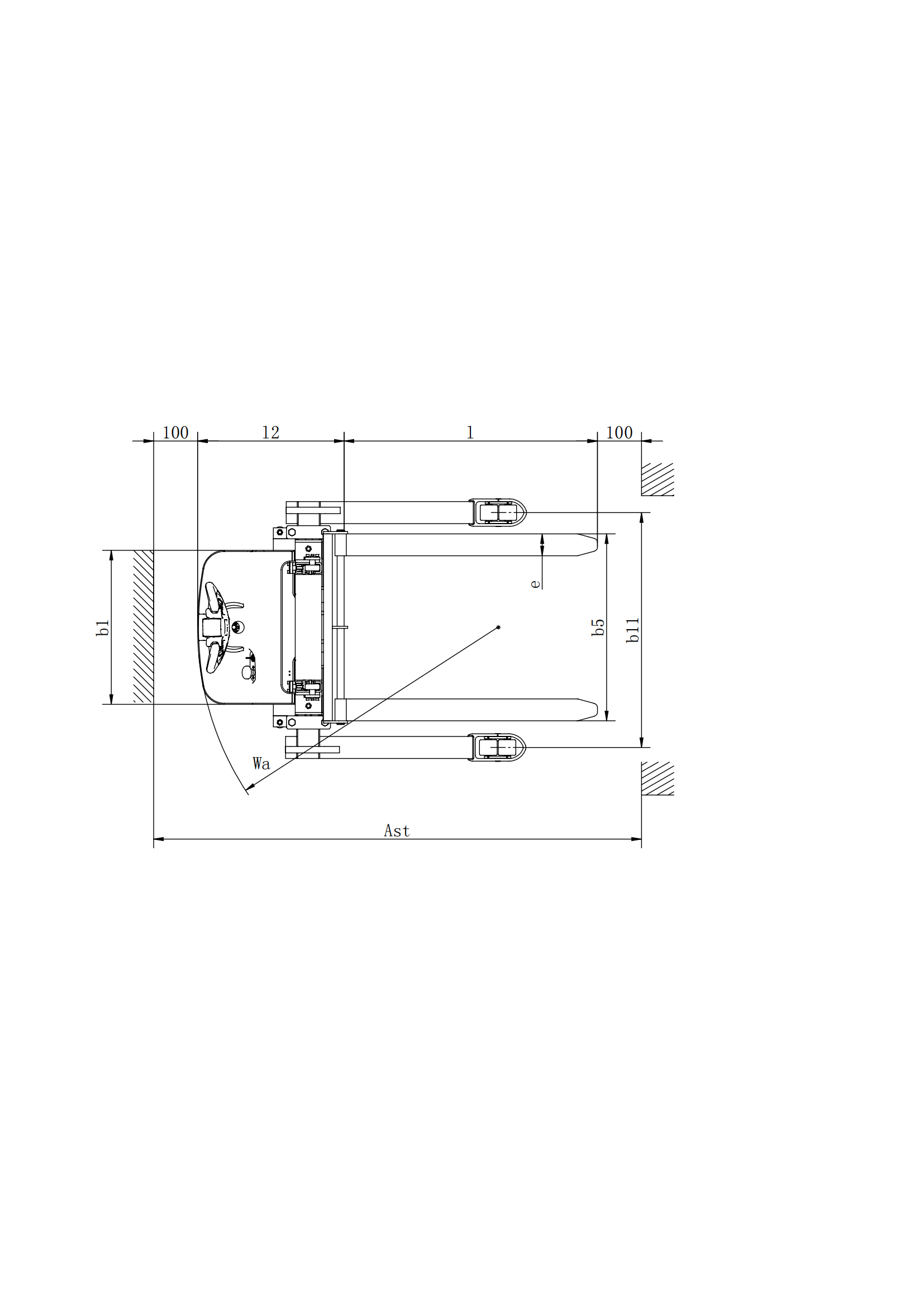

Characteristics Model CL1316GHY CL1320GHY CL1325GHY CL1330GHY CL1335GHY Power unit Electric Operation Pedestrian Rated traction weight Q (t) 1.3 Load centre c (mm) 600 Axle centre to fork face x (mm) 698 Wheel base y (mm) 1202 Weights Service weight with battery kg 618 634 646 658 670 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ210×70 Bearing wheel size Φ×w(mm) Φ80×70 Wheels, number front/rear (x = driven) 1x+0/4 Track width b11 (mm) 1024-1424 Dimensions Height of mast, lowered h1 (mm) 2099 1580 1830 2080 2330 Lift h3 (mm) 1600 2000 2500 3000 3500 Height of mast, extended h4 (mm) 2099 2549 3049 3549 4049 Overall height(With handle h14 (mm) 680/1165 lowered hength h13 (mm) 65 Overall length l1 (mm) 1818 Length to fork face l2 (mm) 668 Overall width b1/ b2 (mm) 1148-1548 Fork dimensions s/e/l (mm) 35/100/1150 Width of forks b5 (mm) 210-850 Min.Ground clearance m2 (mm) 26 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2240 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2210 Min.Turning radius Wa (mm) 1370 Performance Travel speed,laden/unladen (km/h) 4.0/4.2 Lifting speed, with/without load (mm/s) 92/136 Lowering speed, with/without load (mm/s) 112/98 Maximum climbing ability, with/without load (%) 3/8 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 0.75 Lift motor rating at S3 15% (kW) 2.2 Battery voltage/rated capacity (V/Ah) 2×12/100 Battery weight (± 5%) (kg) 2×27 Others Type of drive control DC Noise level at operator‘s ear (dB(A)) ≤70 Type of steering Mechanical
