- Description
-
Electric reach stacker (QGB18X)
Product Features
1.High power drive, high frequency, high efficiency, quiet, stepless speed regulation and reverse braking function. Perfect temperature protection and compensation function to achieve thermal protection and stable output;
2.Drive standard electronic power steering easier, steering more easy, more flexible and accurate control, reduce the operator's labor intensity, automatic speed limit for corners, make driving safer;
3.The operating platform is equipped with intelligent display screen, which can display the rotation direction and rotation direction and angle of the driving wheel in real time, and also report the forklift failure code;
4.Open battery design, battery can be pulled out from the side, Convenient for battery exchange and maintenance;
5.Hydraulic system explosion-proof design, even if the oil pipe burst, the door frame will not drop quickly, It improves safety;
6.Adopt intelligent integrated control handle, easy to operate and comfortable.

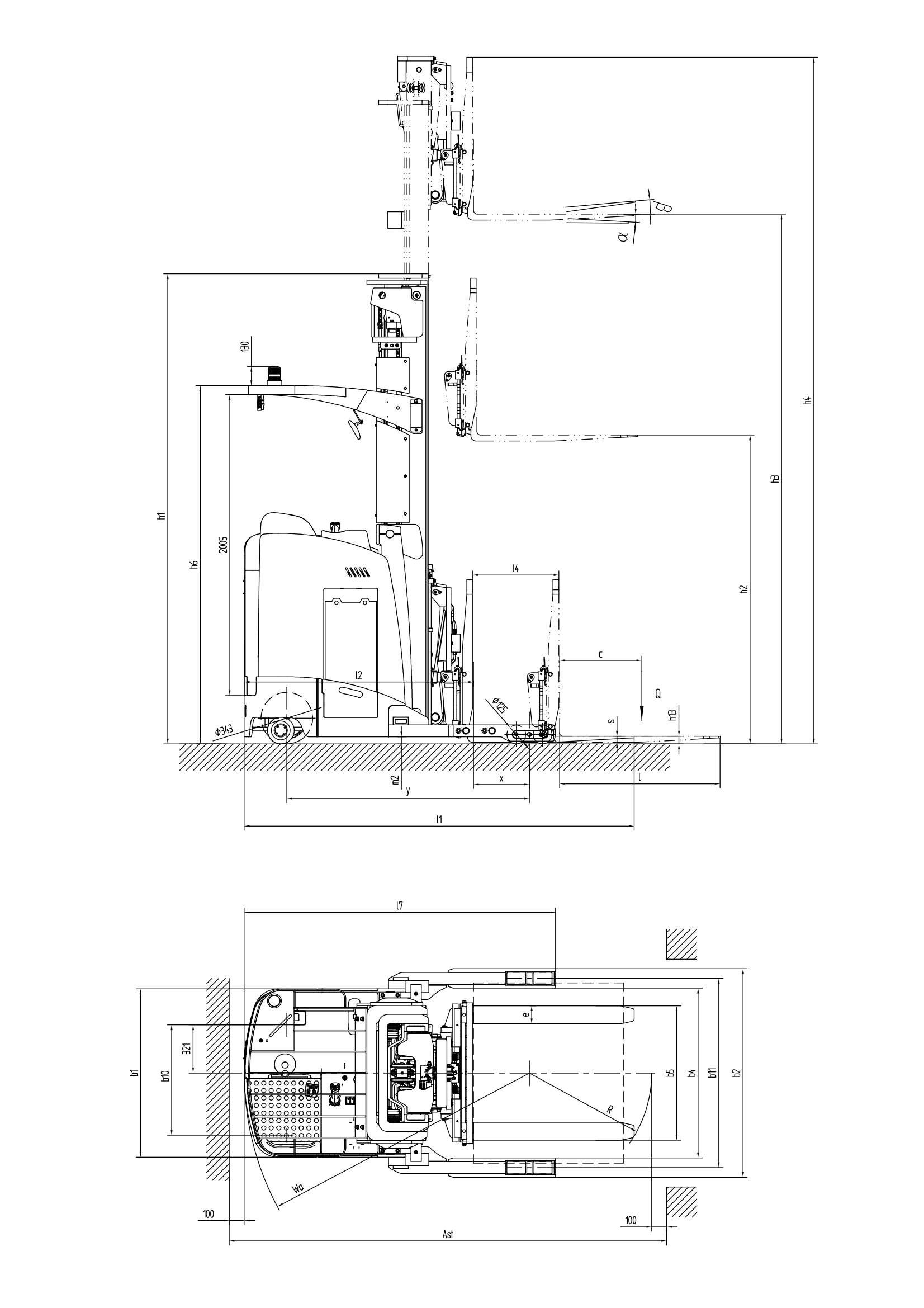

Characteristics Model QGB1850X Power unit electric Operation Seated-on Rated traction weight Q (t) 1.8 Load centre c (mm) 500 Axle centre to fork face x (mm) 375 Wheel base y (mm) 1618 Weights Service weight with battery kg 3670 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ343×132 Bearing wheel size Φ×w(mm) Φ125×82 Wheels, number front/rear (x = driven) 1x,2/4 Track width b10 (mm) 735 Track width b11 (mm) 1260 Dimensions Mast/fork carriage tilt, forward/backward a/b (°) 2/4 Height of mast, lowered h1 (mm) 2449 Free lift h2 (mm) 1350 Lift h3 (mm) 5000 Height of mast, extended h4 (mm) 6120 Height of overhead guard (cabin) h6 (mm) 2386 Fork Height，Lowered h13 (mm) 50 Overall length l1 (mm) 2597 Length to fork face l2 (mm) 1527 Overall width b1/ b2 (mm) 1120/1390 Fork dimensions s/e/l (mm) 40/120/1070 Width of forks b5 (mm) 890 Distance Between Suporrts arms/loading surfaces b4（mm） 1130 Reach distance l4(mm) 570 Min.Ground clearance m2 (mm) 46 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2970 Aisle width with pallet 800 x 1200 along forks Ast (mm) 3020 Min.Turning radius Wa (mm) 1905 length across wheel arms l7 (mm) 2074 Performance Travel speed,laden/unladen (km/h) 9/9.5 Lifting speed, with/without load (mm/s) 190/230 Lowering speed, with/without load (mm/s) 300/290 Reach speed,laden/unladen (mm/s) 100/110 Maximum climbing ability, with/without load (%) 6/10 Service brake electromagnetic Drive Drive motor, 60 minute rating (kW) 6 Lift motor rating at S3 15% (kW) 11 Battery according to DIN 43531/35/36 A,B,C,no no Battery voltage/rated capacity (V/Ah) 48/420 Battery weight (± 5%) (kg) 700 Others Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤75
