- Description
-
Electric reach stacker (QGB20S)
Product Features
1.Adopt high quality channel steel to improve the service life and excellent stability of the frame;
2.Wide and comfortable cab and adjustable seat, embodies the humanized design of the car;
3.Adopt double electric control, the lifting of goods and the driving of forklift can achieve stepless speed regulation;
4.Wide and strong forklift chassis, very strength bearing wheel design, to ensure sufficient stability of the vehicle;
5.High speed limit setting, when the fork is lifted to a certain height, the vehicle speed will automatically decrease, to ensure the safety of high-altitude operation;
6.Electronic power steering system, make the steering flexible and light; Automatic deceleration function at corners, safer driving;
7.The front two wheels adopt hydraulic braking, and the braking of the driving motor is controlled by the electric control system, which makes the start, moving and braking of the forklift more effective
8.Hydraulic system explosion-proof design, even if the pipe burst, the door frame will not drop quickly, improve safety;
9.The hinged design of seat cover and back cover facilitates the detection, maintenance and replacement of components;
10.The controller has self-diagnosis function, the fault code can be displayed after the hand-held unit is connected with the controller, and the fault can be checked quickly and accurately;

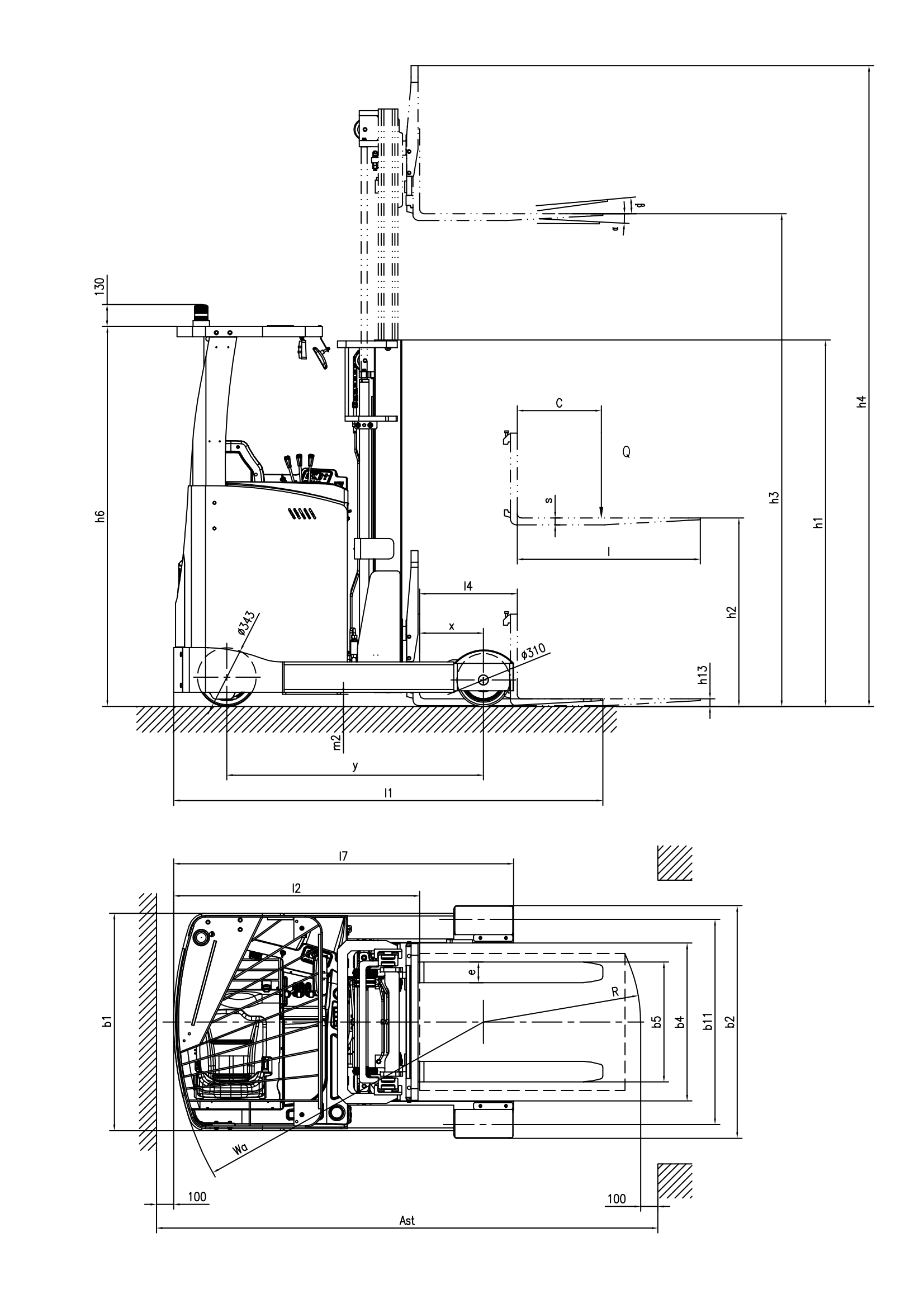

Characteristics Model QGB20S Power unit electric Operation Seated-on Rated traction weight Q (t) 2.0 Load centre c (mm) 500 Axle centre to fork face x (mm) 372 Wheel base y (mm) 1500 Weights Service weight with battery kg 2880 Axle loading ,Pallet fork forward,unladen front/rear kg 1580/1300 Axle loading ,Pallet fork back,unladen front/rear kg 1790/1090 Axle loading ,Pallet fork forward,laden front/rear kg 680/4300 Axle loading ,Pallet fork back,laden front/rear kg 1740/3240 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ343×130 Bearing wheel size Φ×w(mm) Φ310×135 Wheels, number front/rear (x = driven) 1,2 Track width b11 (mm) 1165 Dimensions Mast/fork carriage tilt, forward/backward a/b (°) 3/5 Height of mast, lowered h1 (mm) 2190 Lift h3 (mm) 3000 Height of mast, extended h4 (mm) 3880 Height of overhead guard (cabin) h6 (mm) 2380 Fork Height，Lowered h13 (mm) 45 Overall length l1 (mm) 2508 Length to fork face l2 (mm) 1438 Overall width b1/ b2 (mm) 1372/1270 Fork dimensions s/e/l (mm) 40/120/1070 Width of forks b5 (mm) 825 Distance Between Suporrts arms/loading surfaces b4（mm） 922 Reach distance l4(mm) 570 Min.Ground clearance m2 (mm) 72 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2900 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2950 Min.Turning radius Wa (mm) 1830 length across wheel arms l7 (mm) 1987 Performance Travel speed,laden/unladen (km/h) 9/9.5 Lifting speed, with/without load (mm/s) 240/305 Lowering speed, with/without load (mm/s) 290/300 Reach speed,laden/unladen (mm/s) 72/70 Maximum climbing ability, with/without load (%) 10/15 Drive Drive motor, 60 minute rating (kW) 6 Lift motor rating at S3 15% (kW) 11 Battery voltage/rated capacity (V/Ah) 48/420 Battery weight (± 5%) (kg) 700 Others Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤75
