- Description
-
Electric reach stacker (Q15GB)
Product Features
1.Controller has self-diagnostic function, the handheld unit can be displayed after the controller is coupled to the fault code, and quickly accurately troubleshoot;
2.The front wheel uses a large wheel design, the vehicle chassis is lifted, the secondary wheel on both sides of the drive wheel provides a safe aid for the chassis, making the vehicle has ability to overcome obstacles, stable and flexible;
3.The pedal switch can control the operation of the vehicle, and after leave the pedal switch is stepped on, it can operate the vehicle, and vice versa, the vehicle stops running, the design improves the safety of the whole vehicle;
4.The side of the driving position is equipped with a backrest, and the upper cove is equipped with a hand cushion for staff to support their hands. these two design greatly improve the driver's operation comfort;
5.Integrated high-quality forging forks, set the preceding tilting function, hook design, convenient to adjust the high quality forged fork in one piece equipped with a forward and back tilt function; hook design is convenient to adjust the width to left and right to ensure the accurate stack of the operator；

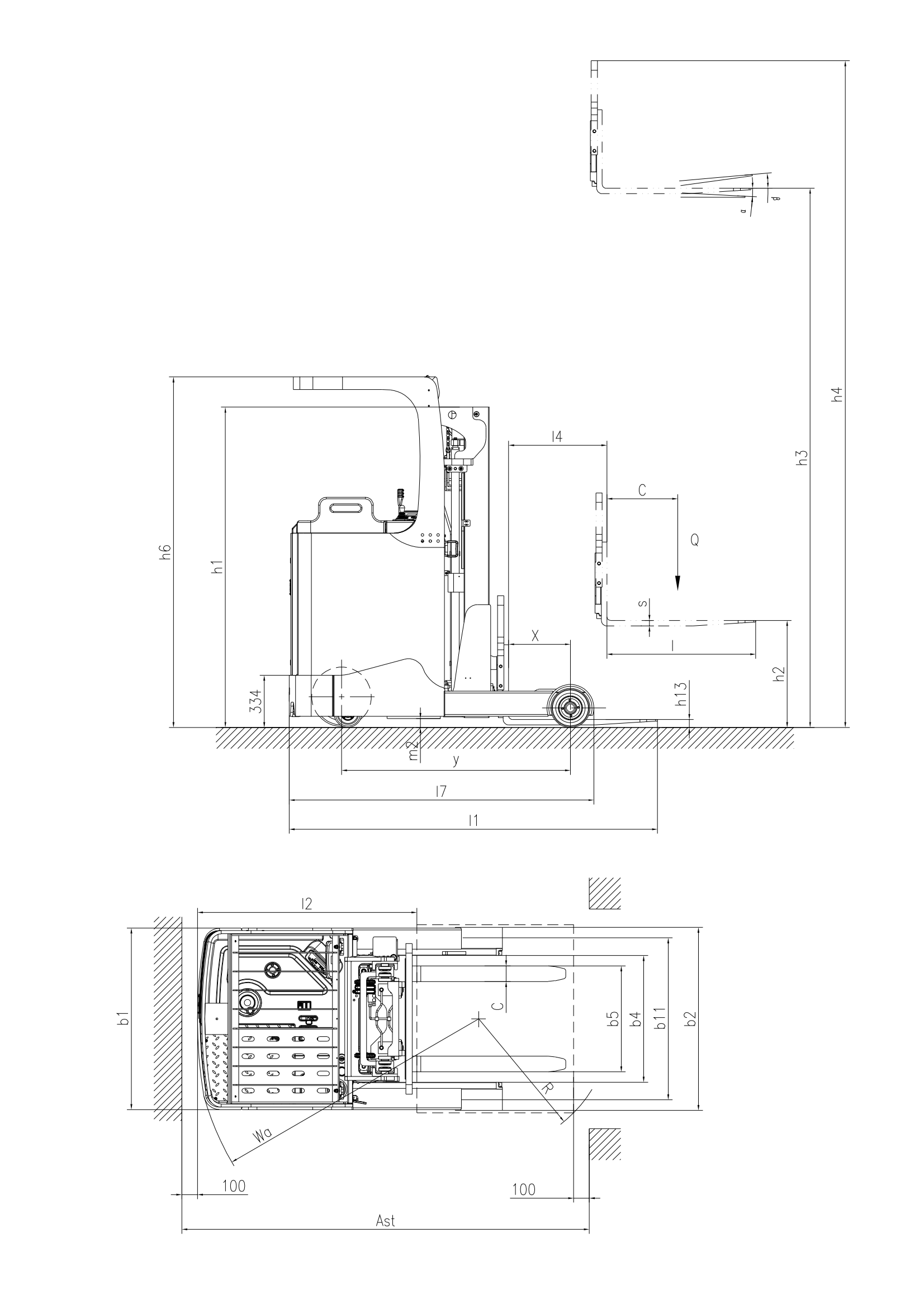

Characteristics Model Q1530GB Q1545GB Q1572GB Power unit electric electric electric Operation Seated-on Seated-on Seated-on Rated traction weight Q (t) 1.5 1.5 1.5 Load centre c (mm) 500 500 500 Axle centre to fork face x (mm) 395 395 395 Wheel base y (mm) 1460 1460 1460 Weights Service weight with battery kg 2850 3390 3740 Wheels/Tyres Wheels type polyurethane polyurethane polyurethane Driving wheel size Φ×w(mm) Φ343×130 Φ343×130 Φ343×130 Bearing wheel size Φ×w(mm) Φ250×120 Φ250×120 Φ250×120 additional wheels（dimensions） Φ×w(mm) Φ178×73 Φ178×73 Φ178×73 Wheels, number front/rear (x = driven) 1，2/2 1，2/2 1，2/2 Track width b10 (mm) 660 660 660 Track width b11 (mm) 1038 1038 1038 Dimensions Mast/fork carriage tilt, forward/backward a/b (°) 3/5 3/5 3/5 Height of mast, lowered h1 (mm) 2044 2165 3065 Free lift h2 (mm) 0 1320 2220 Lift h3 (mm) 3000 4500 7200 Height of mast, extended h4 (mm) 3840 5340 8040 Height of overhead guard (cabin) h6 (mm) 2240 2240 2240 Fork Height，Lowered h13 (mm) 35 35 35 Overall length l1 (mm) 2350 2350 2350 Length to fork face l2 (mm) 1400 1400 1400 Overall width b1/ b2 (mm) 1168/1158 1168/1158 1168/1158 Fork dimensions s/e/l (mm) 35/100/950 35/100/950 35/100/950 Width of forks b5 (mm) 200-775 200-775 200-775 Distance Between Suporrts arms/loading surfaces b4（mm） 808 808 808 Reach distance l4(mm) 570 570 570 Min.Ground clearance m2 (mm) 56 56 56 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2890 2900 2900 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2940 2950 2950 Min.Turning radius Wa (mm) 1830 1830 1830 length across wheel arms l7 (mm) 1940 1940 1940 Performance Travel speed,laden/unladen (km/h) 8.5/9 8.5/9 8.5/9 Lifting speed, with/without load (mm/s) 150/480 120/220 120/220 Lowering speed, with/without load (mm/s) 300/340 220/190 220/190 Reach speed,laden/unladen (mm/s) 83/81 83/81 83/81 Maximum climbing ability, with/without load (%) 10/15 10/15 10/15 Service brake electromagnetic electromagnetic electromagnetic Drive Drive motor, 60 minute rating (kW) 6 6 6 Lift motor rating at S3 15% (kW) 7.7 7.7 7.7 Battery voltage/rated capacity (V/Ah) 48/420 48/420 48/420 Battery weight (± 5%) (kg) 700 700 700 Others Type of drive control AC AC AC Noise level at operator‘s ear (dB(A)) ≤70 ≤70 ≤70
