- Description
-
Electric pallet truck(all-terrain forklift)
Product Features
1.For complex working conditions (such as uneven road surface,silt,debris andother debris on the road surface).
2.Reduce weight,more light and flexible operation.
3.The vehicle size is small,the turning radius is small,and it can carry out handling work in a narrow space.
4.Easy disassembly of battery baffle,convenient replacement of battery longer time,higher efficiency.
5.Built-in charger,charging more convenient and fast.
6.With the upper horizontal driving wheel structure,the motor and brake have ahigher distance from the ground,better driving performance,and moreconvenient replacement of wheels and motors.
7.The high performance pump station motor provides sufficient power under thepremise of greatly reducing energy consumption.
8.Nylon bearing material bearing wheel has strong wear resistance,the fork is 105mm above the ground,the chassis is high and the pass ability is good.

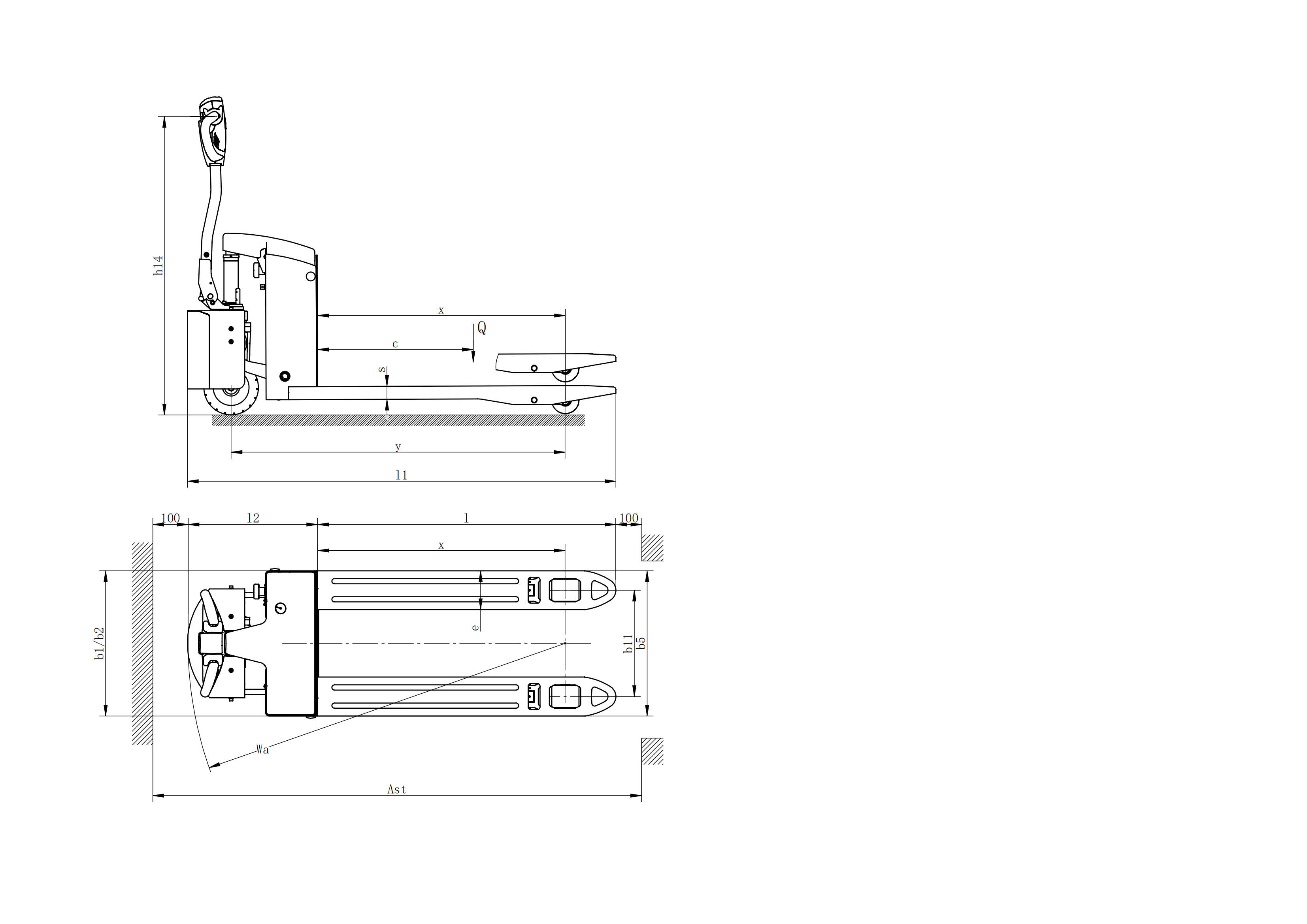

Characteristics Model CBD15-ARC Power unit Electric Operation Walkie Rated traction weight Q (kg) 1500 Load centre c (mm) 600 Axle centre to fork face x (mm) 955 Wheel base y (mm) 1286 Weights Service weight with battery kg 196 Wheels/Tyres Wheels type rubber wheel Driving wheel size Φ×w(mm) Φ210×70 Wheels type Nylon Bearing wheel size Φ×w(mm) Φ105×85 Wheels, number front/rear (x = driven) 1x/2 Track width b11 (mm) 410/535 Dimensions Lift h3 (mm) 220 Overall height(With handle h14 (mm) 820/1150 lowered hength h13 (mm) 105 Overall length l1 (mm) 1635 Length to fork face l2 (mm) 485 Overall width b1/ b2 (mm) 560/685 Fork dimensions s/e/l (mm) 50/150/1150 Width of forks b5 (mm) 560/685 Min.Ground clearance m2 (mm) 55 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 1848 Aisle width with pallet 800 x 1200 along forks Ast (mm) 1898 Min.Turning radius Wa (mm) 1450 Performance Travel speed,laden/unladen (km/h) 3.8/4 Lifting speed, with/without load (mm/s) 28/43 Lowering speed, with/without load (mm/s) 57/36 Maximum climbing ability, with/without load (%) 6/16 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1 Lift motor rating at S3 15% (kW) 0.8 Battery according to DIN 43531/35/36 A,B,C,no no Battery voltage/rated capacity (V/Ah) 4*12/32 Battery weight (± 5%) (kg) 10.1*2 Others Type of drive control DC Noise level at operator‘s ear (dB(A)) ≤70 Type of steering Mechanical
