- Description
-
Electric pallet truck (SL15L3E-E)
Product features:
1: The product meets the CE safety certification, anti-collision switch, can walk upright；
2: permanent magnet brushless drive and efficient domestic controller combination, good passability, 10% of the ramp easily up；
3: Electric lift, electric drop, electric walking；
4: The frame structure is reasonable and durable, the turning radius is small, the space is flexible, the imitation fork can easily enter and exit the double-sided tray；
5: Simple assembly structure, the whole machine maintenance is more convenient and efficient；

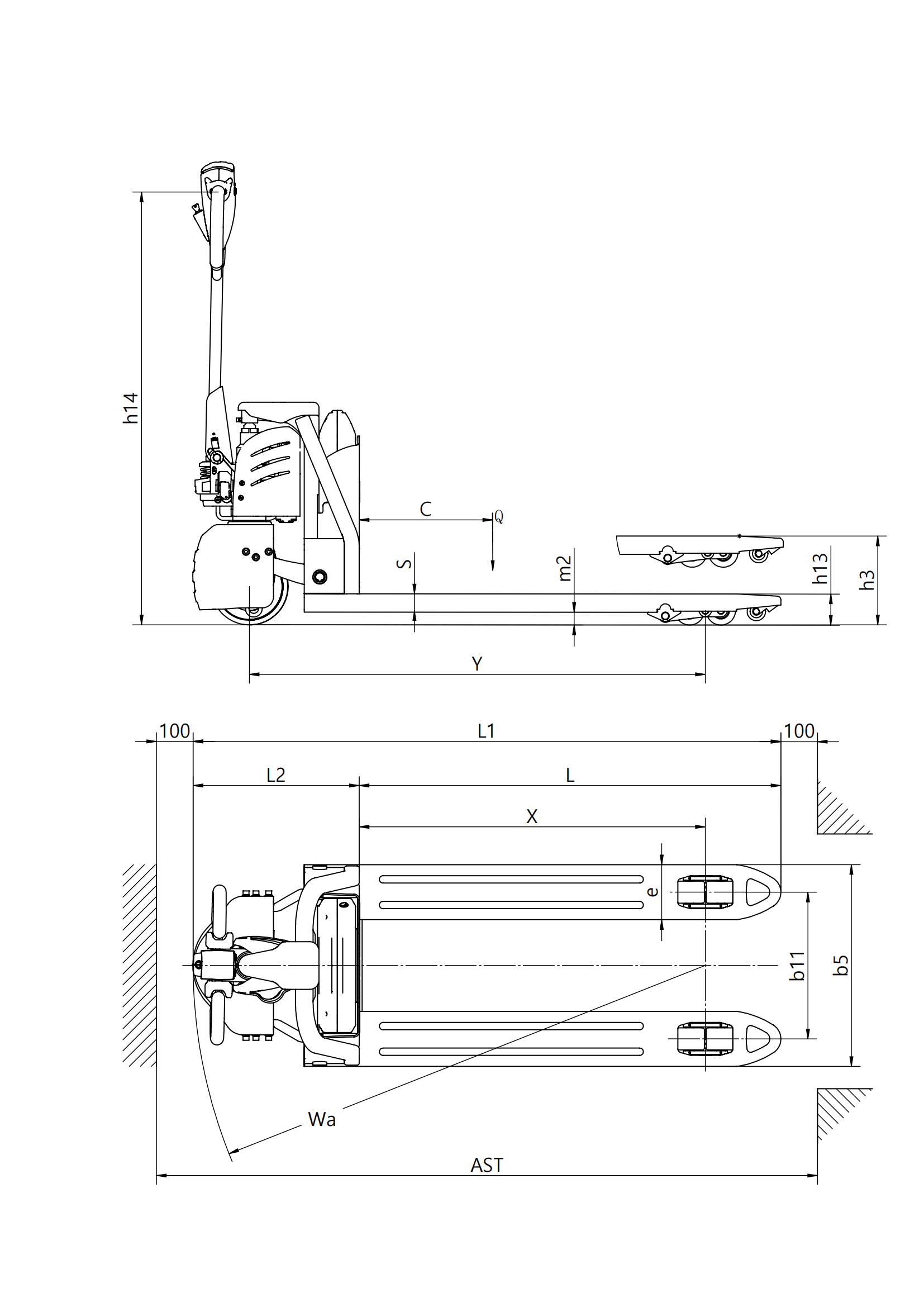

Characteristics Model SL20L3E-E Power unit Electric Operation Pedestrian Rated traction weight Q (t) 2 Load centre c (mm) 600 Axle centre to fork face x (mm) 944 Wheel base y (mm) 1243 Weights Service weight with battery kg 160 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ210×70 Bearing wheel size Φ×w(mm) Φ80×60 Wheels, number front/rear (x = driven) 1x/4 Track width b11 (mm) 400/535 Dimensions Lift h3 (mm) 200 Overall height(With handle h14 (mm) 740/1160 lowered hength h13 (mm) 85 Overall length l1 (mm) 1603 Length to fork face l2 (mm) 453 Overall width b1/ b2 (mm) 550/685 Fork dimensions s/e/l (mm) 50/150/1150 Width of forks b5 (mm) 550/685 Min.Ground clearance m2 (mm) 35 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 1804 Aisle width with pallet 800 x 1200 along forks Ast (mm) 1854 Min.Turning radius Wa (mm) 1398 Performance Travel speed,laden/unladen (km/h) 4.2/4.5 Maximum climbing ability, with/without load (%) 8/15 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1 Lift motor rating at S3 15% (kW) 0.8 Battery voltage/rated capacity (V/Ah) 48/15 Battery weight (± 5%) (kg) 18 Others Type of drive control DC Noise level at operator‘s ear (dB(A)) ≤70 Mechanical
