Electric stacker （CL10J series）
Product features
1.Side drive design, effectively reduce the operation channel，small turning radius, better field of view, suitable for operation in narrow space;
2.The operation handle is extended for walking vehicles, which is in line with the principle of ergonomics, and is comfortable;
3.Key switch, electric meter, up and down button, turtle speed switch are integrated in the operation handle, easy to operate;
4.External charger, better heat dissipation performance, avoiding the damage caused by the built-in charger due to vibration when the vehicle is running ;
5.German original imported waterproof micro switch, adapt to cold, humid ,dusty and other harsh environment;
6.Permanent magnet motor drive system, small size, light quality, small loss, high efficiency;
7.Installed high-density wire protective net, braided and welded, strong and durable, excellent protection effect;

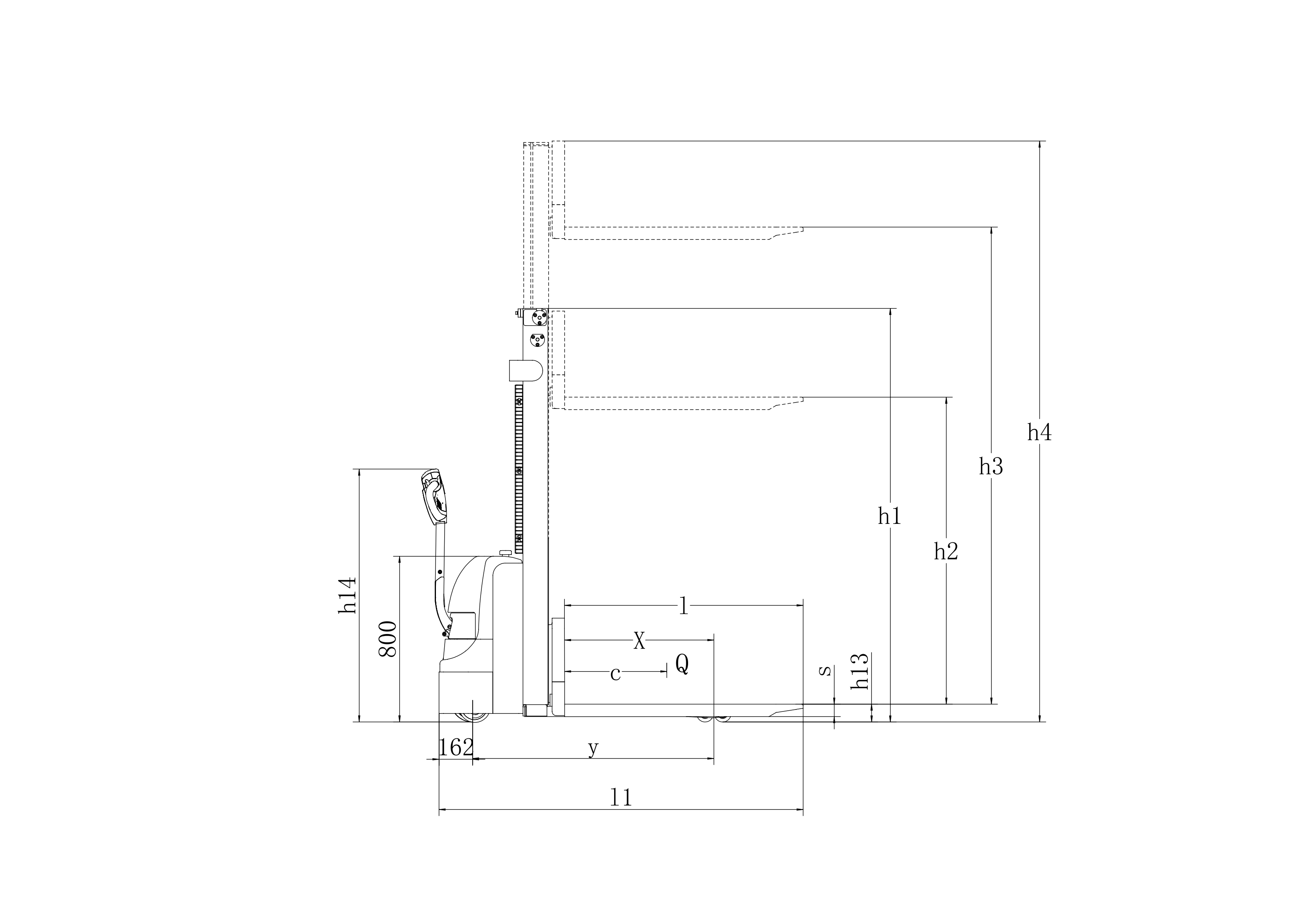

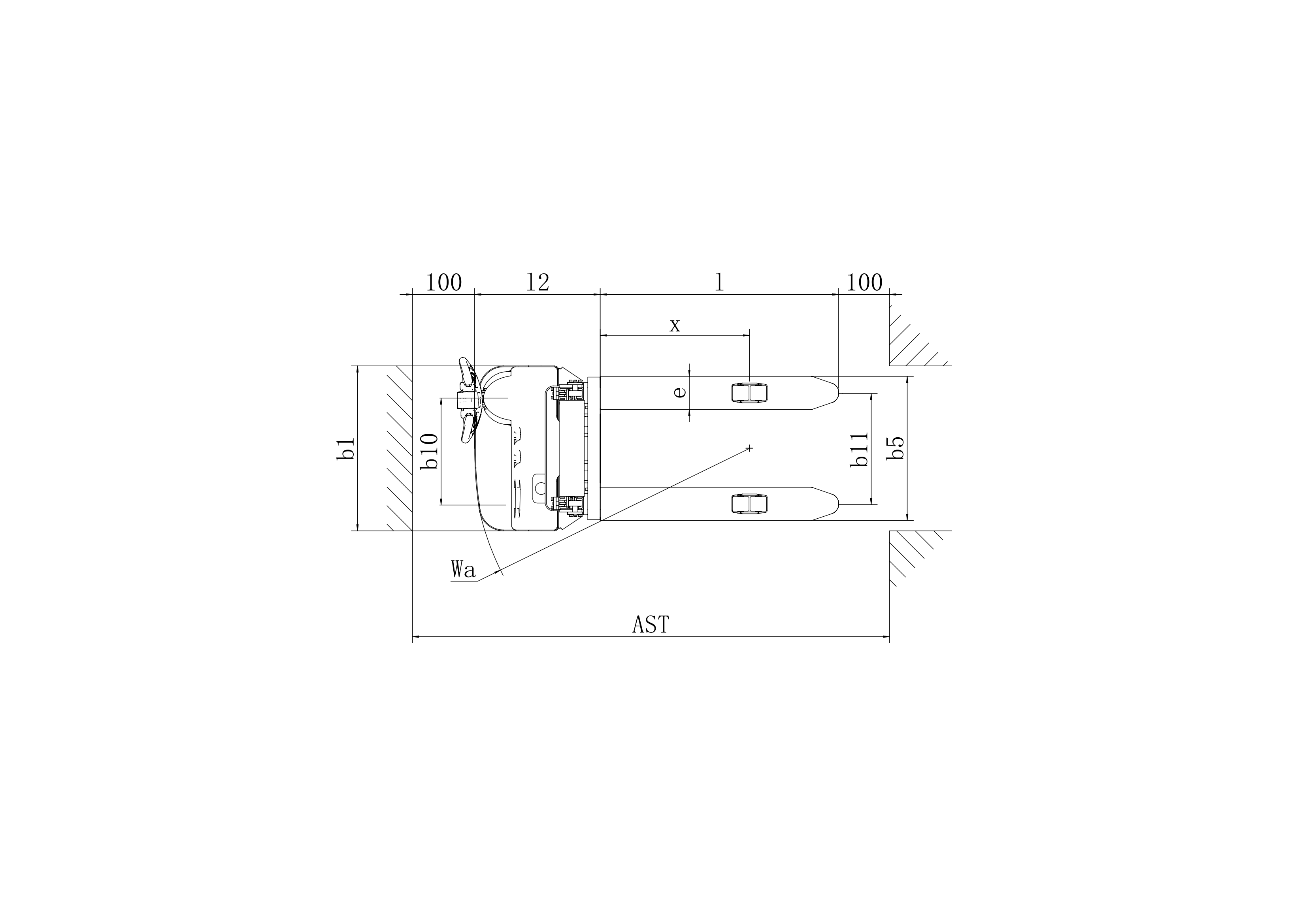

Characteristics Model CL1030J CL1016D Power unit electric Operation Pedestrian Rated traction weight Q (t) 1 Load centre c (mm) 600 Axle centre to fork face x (mm) 780 Wheel base y (mm) 1230 1100 Weights Service weight with battery kg 465 406 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ210×70 Bearing wheel size Φ×w(mm) Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ150×58 Wheels, number front/rear (x = driven) 1x+1/4 Track width b10 (mm) 516 Track width b11 (mm) 535 Dimensions Height of mast, lowered h1 (mm) 1995 1990 Free lift h2 (mm) 0 1485 Lift h3 (mm) 3000 1600 Height of mast, extended h4 (mm) 3452 2060 Overall height(With handle h14 (mm) 870/1200 lowered hength h13 (mm) 86 Overall length l1 (mm) 1755 1632 Length to fork face l2 (mm) 605 482 Overall width b1/ b2 (mm) 795 Fork dimensions s/e/l (mm) 60/160/1150 Width of forks b5 (mm) 570/695 Min.Ground clearance m2 (mm) 26 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2245 2120 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2185 2060 Min.Turning radius Wa (mm) 1405 1280 Performance Travel speed,laden/unladen (km/h) 4.0/4.2 Lifting speed, with/without load (mm/s) 92/136 Lowering speed, with/without load (mm/s) 112/98 Maximum climbing ability, with/without load (%) 3/10 Service brake electromagnetic Drive Drive motor, 60 minute rating (kW) 0.75 Lift motor rating at S3 15% (kW) 2.2 Battery voltage/rated capacity (V/Ah) 2×12/100 Battery weight (± 5%) (kg) 2×27 Others Type of drive control DC Noise level at operator‘s ear (dB(A)) ≤70 Type of steering Mechanical
