- Description
-
Electric counterbalanced forklift truck(Standing on)
Product Features
1.Small size and light weight, suitable for narrow passages, with features such as high lift, high load capacity, and small turning radius;
2.The door frame design with wide field of view makes the operator's field of view wide, and the work efficiency and safety performance can be improved;
3.Buffer-type lifting cylinder, when the cargo drops to close to the ground, the cylinder throttles and slows down, which increases the safety of operation;
4.The new headlight design makes the operation easier in poor light environment, improves the safety of night work;
5.The door frame is made of imported high-quality channel steel, which increases the strength of the car body and ensures the stability of high-level heavy-duty lifting;

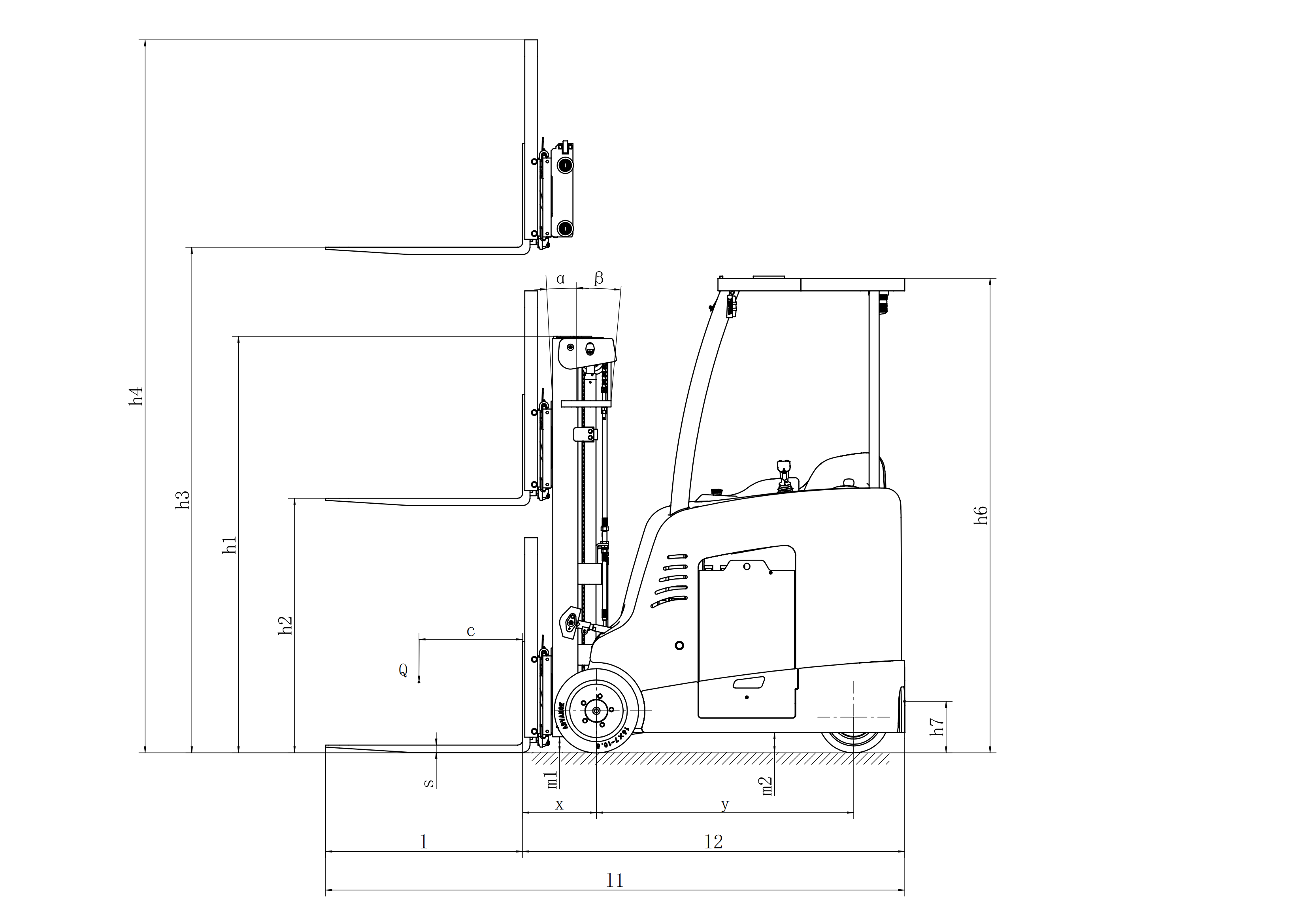

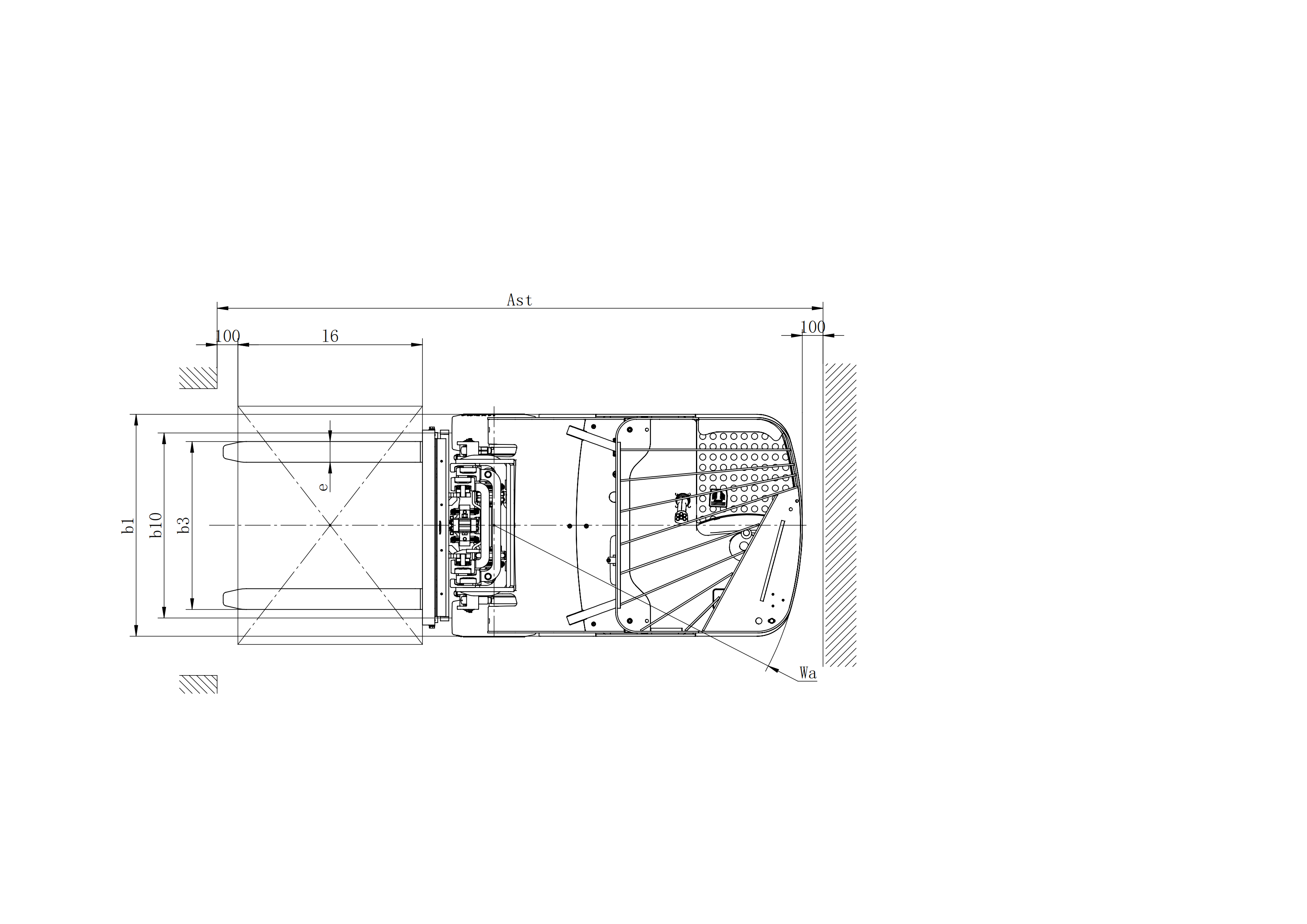

Characteristics Model EGS1848L EGS1855L Power unit Electric Electric Operation Standing on Standing on Rated traction weight Q (t) 1.8 1.8 Load centre c (mm) 500 500 Axle centre to fork face x (mm) 292 292 Wheel base y (mm) 1240 1240 Weights Service weight with battery kg 3580 3610 Wheels/Tyres Wheels type Solid Solid Driving wheel size 16×7-10.5（406×178×267） 16×7-10.5（406×178×267） Bearing wheel size 343×132 343×132 Wheels, number front/rear (x = driven) 2/1× 2/1× Track width b10 (mm) 890 890 Track width b11 (mm) 0 0 Dimensions Mast/fork carriage tilt, forward/backward α/β(°) 3/5 3/5 Height of mast, lowered h1 (mm) 2098 2331 Free lift h2 (mm) 1325 1558 Lift h3 (mm) 4800 5500 Height of mast, extended h4 (mm) 5610 6310 Height of overhead guard (cabin) h6 (mm) 2288 2288 Height of seat/stand-on platform h7 (mm) 230 230 Overall length l1 (mm) 2730 2730 Length to fork face l2 (mm) 1780 1780 Overall width b1/ b2 (mm) 1080/1070 1080/1070 Fork dimensions s/e/l (mm) 35/100/950（1070） 35/100/950（1070） Width of fork carriage b3 (mm) 920 920 Width of forks m1 (mm) 75 75 Min.Ground clearance m2 (mm) 98 98 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2978 2978 Aisle width with pallet 800 x 1200 along forks Ast (mm) 3178 3178 Min.Turning radius Wa (mm) 1486 1486 Performance Travel speed,laden/unladen (km/h) 7.5/8 7.5/8 Lifting speed, with/without load (mm/s) 215/265 215/265 Lowering speed, with/without load (mm/s) 375/220 375/220 Climbing ability, with/without load (%) 6/10 6/10 Service brake Electromagnetic Electromagnetic Drive Drive motor, 60 minute rating (kW) 6 6 Lift motor rating at S3 15% (kW) 7.7 7.7 Battery according to DIN 43531/35/36 A,B,C,no no no Battery voltage/rated capacity (V/Ah) 48/400 48/400 Battery weight (± 5%) (kg) 703 703 Power consumption according to VDI cycle (mm) 965/460/750 965/460/750 Others Type of drive control AC AC Noise level at operator‘s ear (dB(A)) ≤70 ≤70 Electric Electric
