- Description
-
Tow tractor（T30）
Product Features
1.Pedal switch design position is reasonable, easy to operate;
2.Wide and comfortable operating space, equipped with rubber cushion, to provide the operator with comfortable driving experience;
3.Side pull battery box design, easy to replace the battery, convenient for continuous operation;
4.By adjusting the hole position, the tractor frame can achieve four different hook heights to ensure that various needs and reliable connection of different trailers can be met;
5.Advanced EPS electronic power steering system, when turning at large angle, to ensure that the vehicle is more stable and safe when running at large angles;

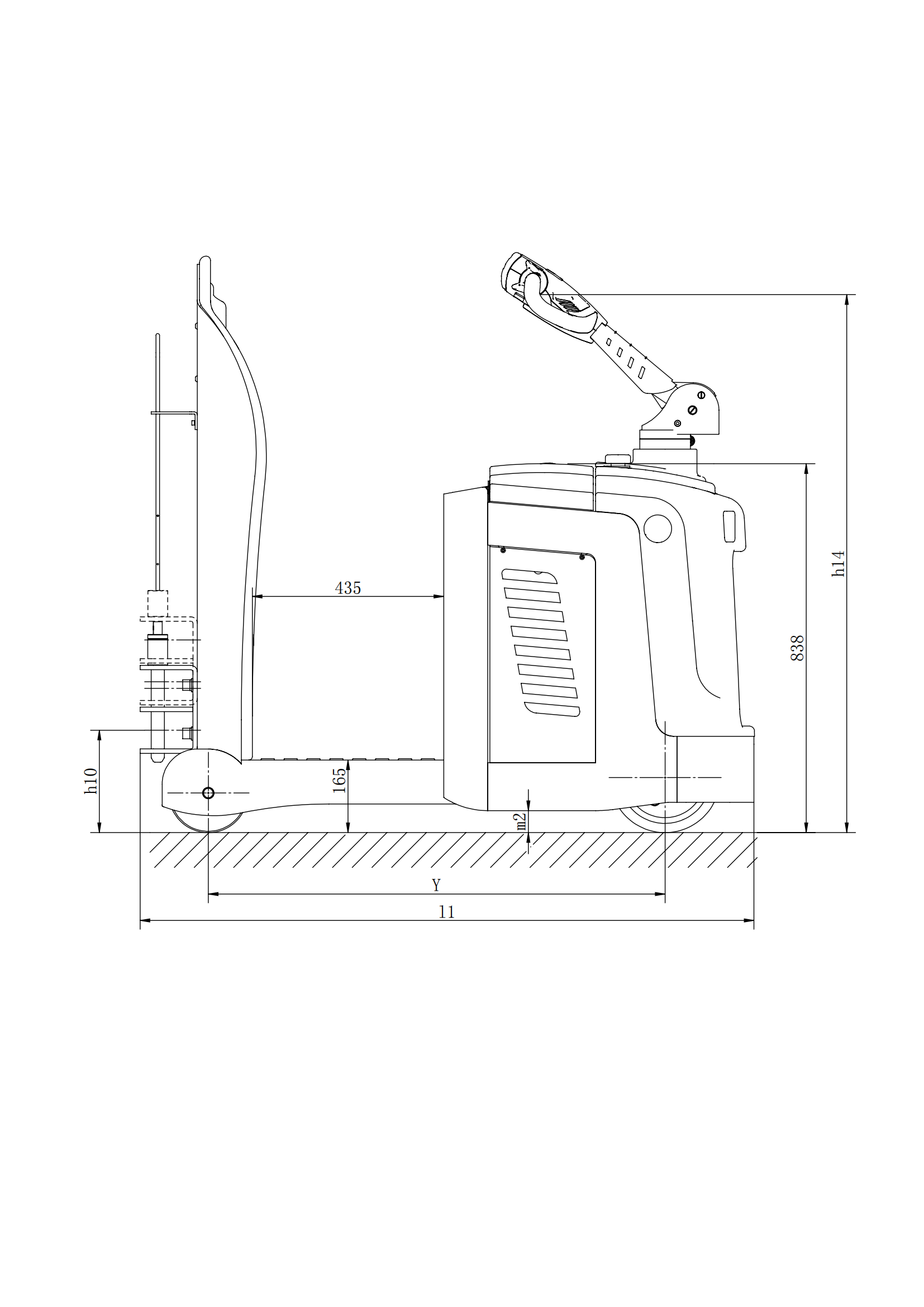

Characteristics Model T30 Power unit Electric Operation Standing on Rated traction weight Q (t) 3 Wheel base y (mm) 1038 Weights Service weight with battery kg 768 Wheels/Tyres Wheels type PU Driving wheel size (mm) Ф250x75 Bearing wheel size (mm) Φ180×76 Wheels, number front/rear (x = driven) 2/1x Track width b11 (mm) 618 Dimensions Coupler height h10 (mm) 233/328/343/438 Overall length l1 (mm) 1395 Overall width b1/ b2 (mm) 808 Min.Ground clearance m2 (mm) 65 Min.Turning radius Wa (mm) 1242 Performance Travel speed,laden/unladen km/ h 6/7 Rated pulling power N 600 Max.pulling power N 2000 Gradeability,laden/unladen % 3/15 Brake Electromagnetic Drive Drive motor kW 3 Battery voltage/ Battery capacity V/ Ah 24/210 Battery weight kg 190 Others Type of drive control AC Type of steering Electric Noise level at operator‘s ear dB (A) ≤70 Traction coupling Bolt
