- Description
-
Electric pallet truck（SLGA series）
Product Features
1.The floating bracket is set in the middle of the drive system to ensure the stability of the vehicle operation, and the body is smooth and stable when turning;
2.With the power off brake function, when the handle is loosened or pressed to the bottom, the vehicle will brake and power off immediately;
3. The standard configuration of the whole series is the electronic power steering system, the power response is keen, and the handle is comfortable to manipulate;
4.Configured boost cylinder, fast speed, large power, and low energy consumption, prevent the slippage when overloading;
5.The standard configuration is side pull battery, replacing the battery is more convenient and fast, convenient for continuous operation, and improve work efficiency;

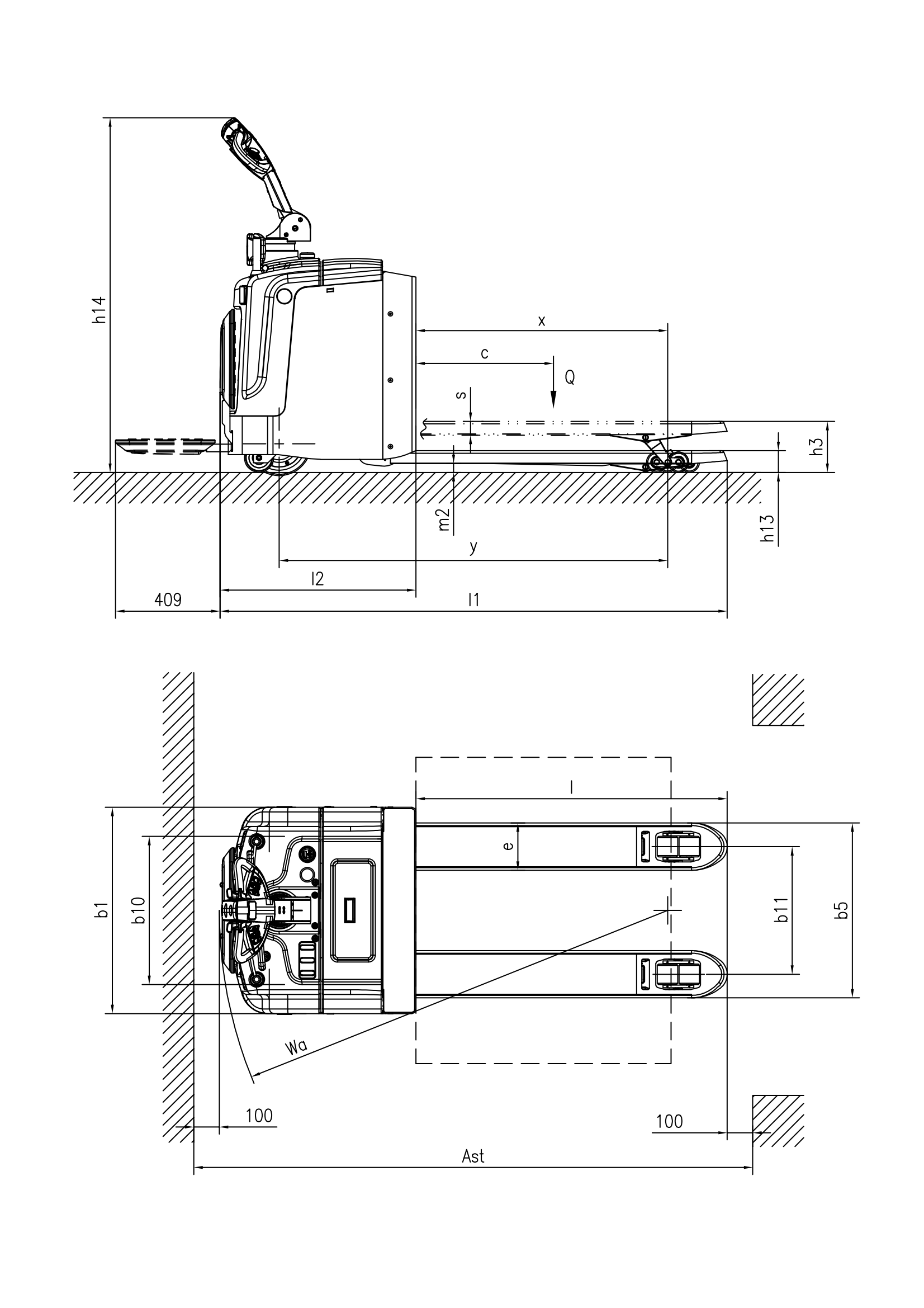

Characteristics Model SL20GA SL25GA SL30GA Power unit Electric Operation Standing on Rated traction weight Q (t) 2 2.5 3 Load centre c (mm) 600 Axle centre to fork face x (mm) 1039 Wheel base y (mm) 1560 Weights Service weight with battery kg 810 830 850 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ250×75 Bearing wheel size Φ×w(mm) Φ80×80 additional wheels（dimensions） Φ×w(mm) Φ115×55 Wheels, number front/rear (x = driven) 1x+2/4 Track width b10 (mm) 580 Track width b11 (mm) 355/500 Dimensions Lift h3 (mm) 200 Overall height(With handle h14 (mm) 1150/1455 lowered hength h13 (mm) 85 Overall length l1 (mm) 1910(1985) Length to fork face l2 (mm) 756 Overall width b1/ b2 (mm) 808 Fork dimensions s/e/l (mm) 50/185/1150（1220） Width of forks b5 (mm) 540/685 Min.Ground clearance m2 (mm) 35 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2180 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2380 Min.Turning radius Wa (mm) 1746 Performance Travel speed,laden/unladen (km/h) 5.2/5.5 5.2/5.5 7.5/9 Lifting speed, with/without load (mm/s) 22/28 18/20 15/18 Lowering speed, with/without load (mm/s) 30/20 32/18 35/16 Maximum climbing ability, with/without load (%) 6/8 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 1.5 2.0 2.5 Lift motor rating at S3 15% (kW) 0.8 1.5 1.5 Battery voltage/rated capacity (V/Ah) 24/210 Battery weight (± 5%) (kg) 210 Others Type of drive control AC Type of steering Electric
