- Description
-
Electric pallet truck（SL15L3/SL20L3）
Product Features
1.The vehicle is simple, dexterous, reliable and easy to operate. Compact structure, small turning radius. Light weight, can be used in freight elevator. Low noise, high performance;
2.The structural design allows the vehicle to maintain a light weight while having a strong skeleton
3.The whole machine adopts open design, easy to disassemble and replace the battery, convenient for users to maintain the vehicle. when the battery runs out, another set of battery can be quickly replaced (optional), effectively extend working hours;
4.Reverse anti-collision switch, dual guarantee of electromagnetic braking and motor braking is adopted for driving braking, which fully considers the operator's driving safety;
5.The electric lifting function on the operating handle saves the operator energy. The manual descending function can adjust the descending speed by pulling the handle to improve safety；
6.The sturdy metal cover protects the motor and wheels, while also reliably protecting the operator's feet to improve safety；

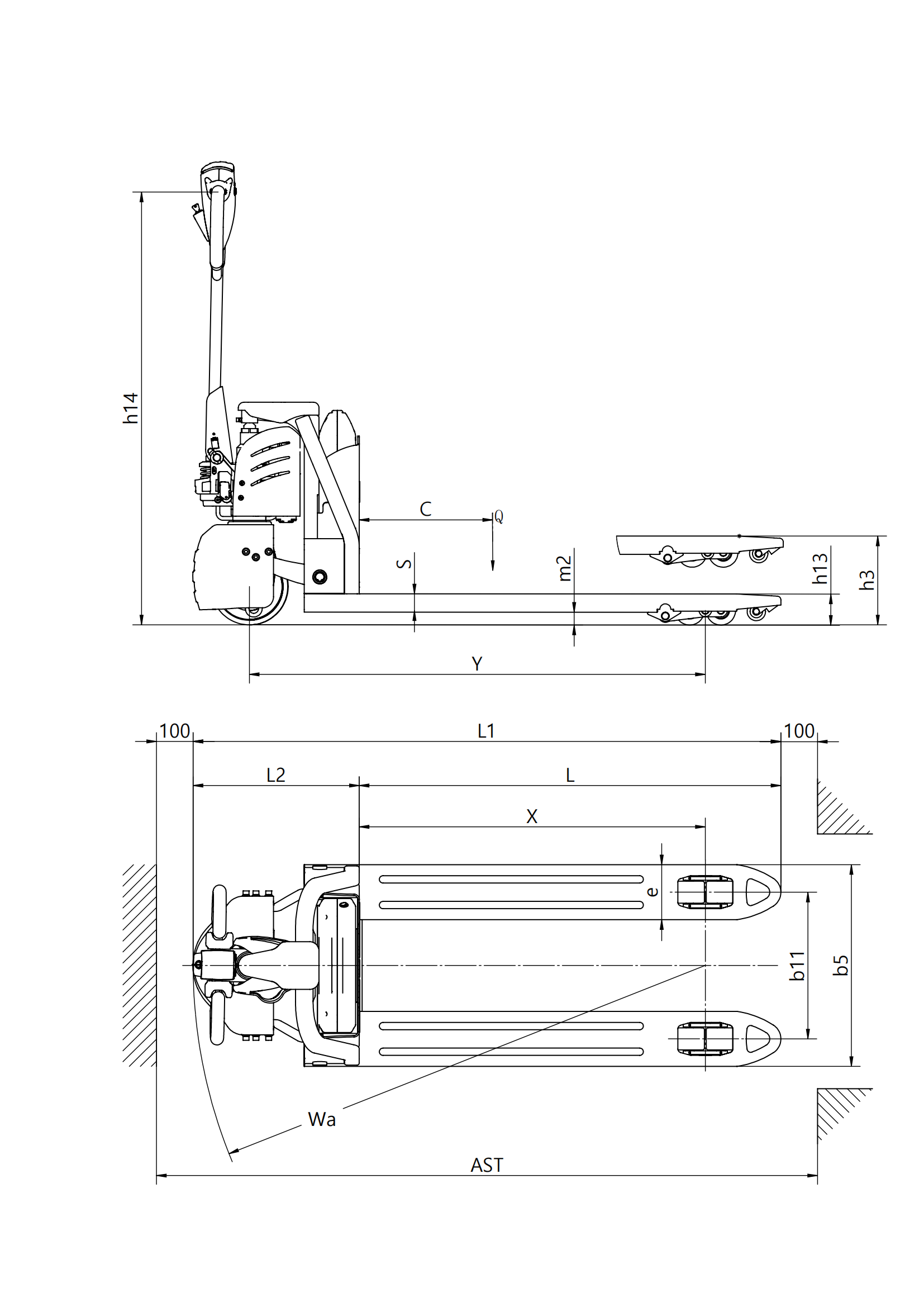

Characteristics Model SL15L3 SL20L3 CBD20-ELI Power unit Electric Electric Electric Operation Pedestrian Pedestrian Pedestrian Rated traction weight Q (t) 1.5 2.0 2.0 Load centre c (mm) 600 600 600 Axle centre to fork face x (mm) 944 944 944 Wheel base y (mm) 1243 1243 1243 Weights Service weight with battery kg 142 146 146 Wheels/Tyres Wheels type PU PU PU Driving wheel size Φ×w(mm) Φ210×70 Φ210×70 Φ210×70 Bearing wheel size Φ×w(mm) Φ80×60 Φ80×60 Φ80×60 Wheels, number front/rear (x = driven) 1x/4 1x/4 1x/4 Track width b11 (mm) 400/535 400/535 400/535 Dimensions Lift h3 (mm) 200 200 200 Overall height(With handle h14 (mm) 740/1160 740/1160 740/1160 lowered hength h13 (mm) 85 85 85 Overall length l1 (mm) 1603 1603 1603 Length to fork face l2 (mm) 453 453 453 Overall width b1/ b2 (mm) 550/685 550/685 550/685 Fork dimensions s/e/l (mm) 50/150/1150 50/150/1150 50/150/1150 Width of forks b5 (mm) 550/685 550/685 550/685 Min.Ground clearance m2 (mm) 35 35 35 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 1804 1804 1804 Aisle width with pallet 800 x 1200 along forks Ast (mm) 1854 1854 1854 Min.Turning radius Wa (mm) 1398 1398 1398 Performance Travel speed,laden/unladen (km/h) 4.2/4.5 4.2/4.5 4.2/4.5 Maximum climbing ability, with/without load (%) 5/10 5/10 5/10 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 0.75 0.75 0.75 Lift motor rating at S3 15% (kW) 0.5 0.8 0.8 Battery voltage/rated capacity (V/Ah) 24/20 24/30 24/40 24/60 48/20 48/30 48/15 Battery weight (± 5%) (kg) 6 8.2 10.2 13.2 10.2 13.2 8.2 Others Type of drive control DC Noise level at operator‘s ear (dB(A)) ≤70 ≤70 ≤70 Type of steering Mechanical
