- Description
-
Electric stacker(CL12JY series)
Product features
1.Reinforcing ribs are set between the internal and external masts to ensure that the mast will not tilt forward when the load is raised, and the vehicle stability is better;
2.Permanent magnet motor drive system, small size, light quality, small loss, high efficiency;
3.German original imported waterproof micro switch, adapt to cold, humid ,dusty and other harsh environments;
4.Key switches and power meter are integrated on the operating handle, and the operation is easier;
5.LED display green, yellow and red in sequence, the operator can directly understand remaining power of the battery;
6.The operation handle is equipped with a high quality air pressure spring. Releasing the handle will automatically reset slowly;
7.The operation handle added, speed control is more accurate;
8.The operation handle had up and down button on both sides of the handle, which is very convenient;
9.Although it is an economical stacker, it is still equipped with a high-power, high-performance lifting pump station, and the cargo lifting is balanced and powerful;
10.The operation handle is extended for walking vehicles, in line with ergonomic principles, comfortable operation;
11.Side drive design, effectively reduce the operation channel, small turn radius, better vision, suitable for narrow space operations;
12.The whole vehicle is lighter, so it consumes lesser power, more energy saving and environmental friendly;
13.The support leg width can be adjusted to adapt to various working conditions;
14.Supporting leg is adjustable, adapting to various conditions;

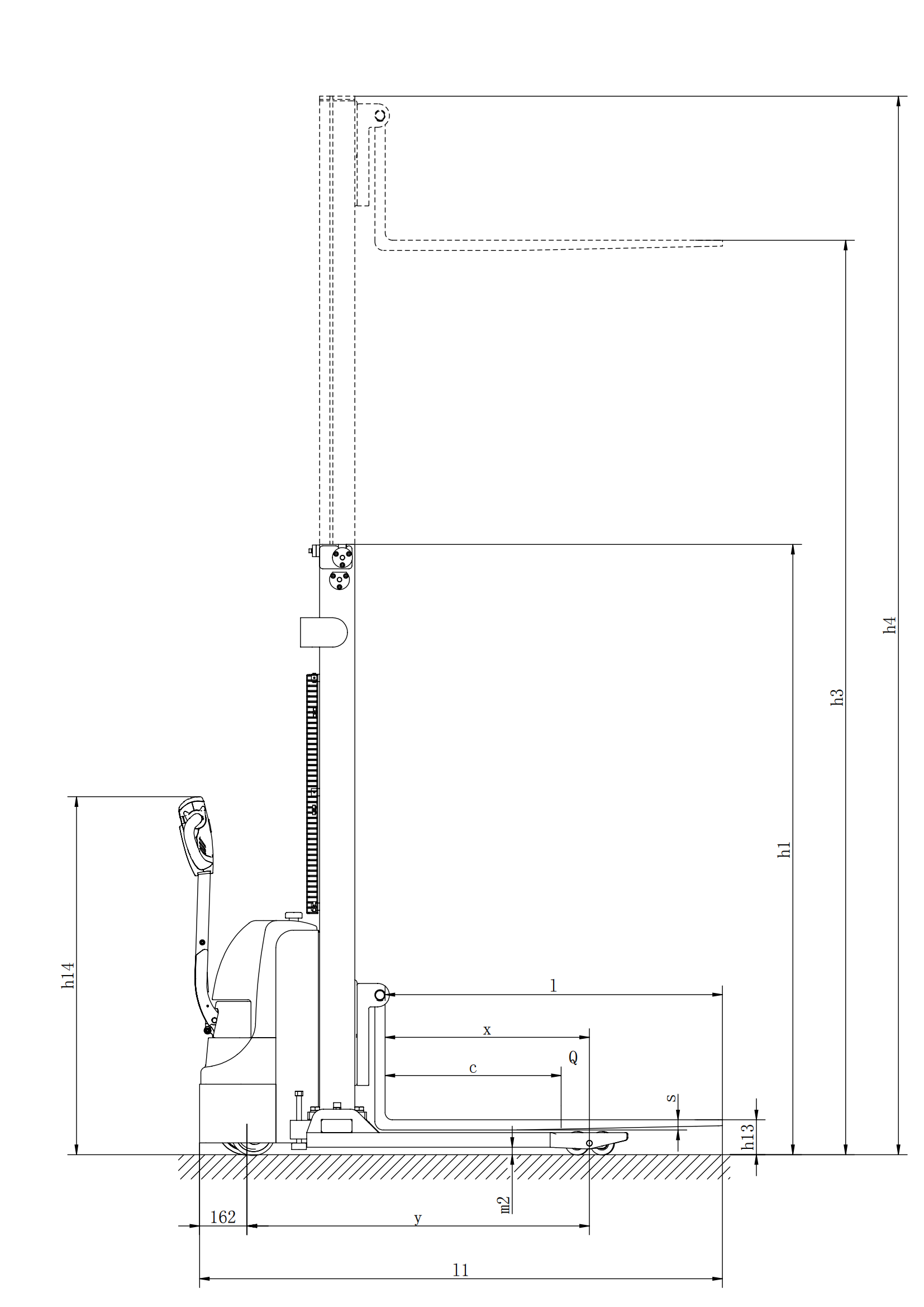

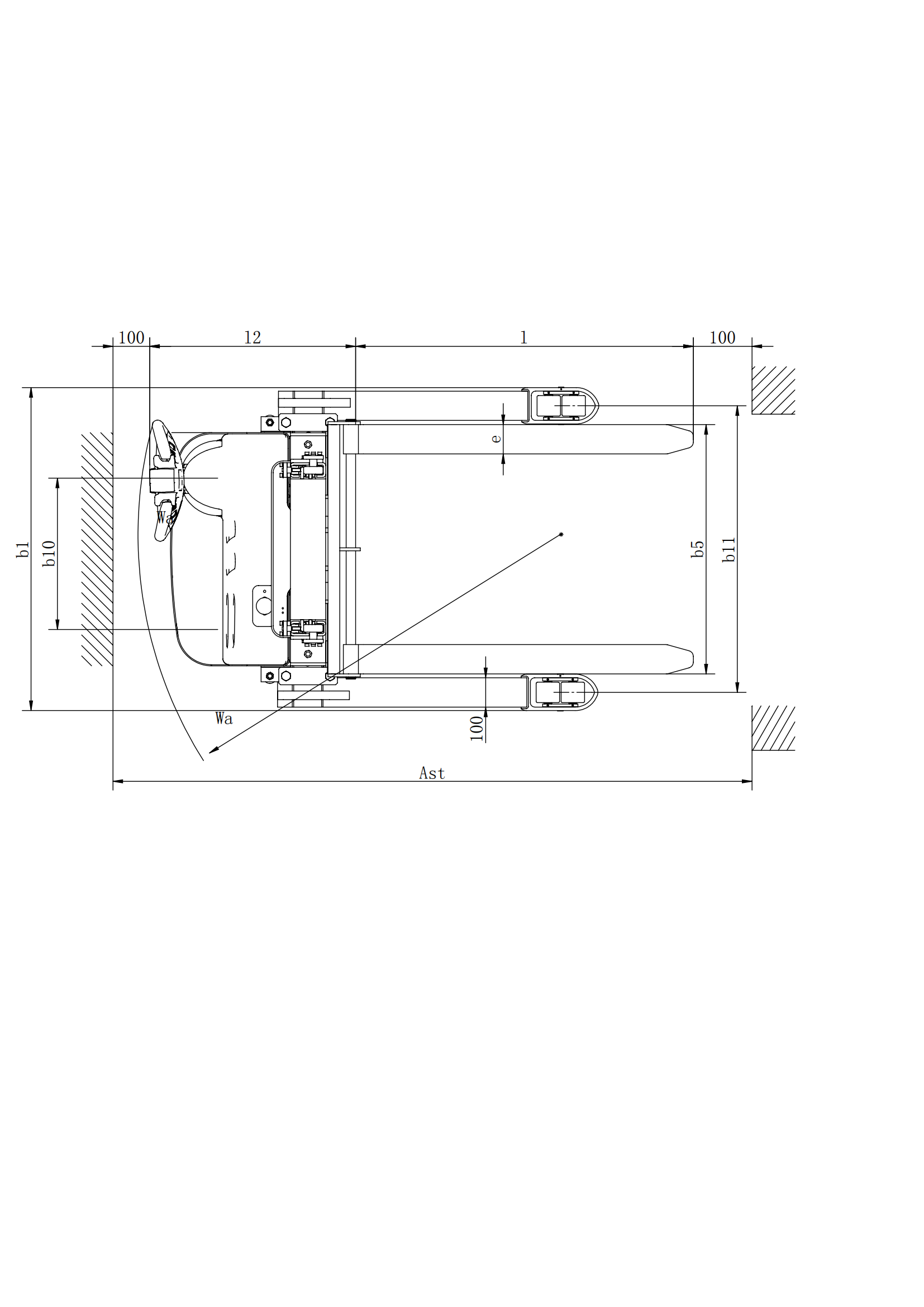

Characteristics Model CL1230JY Power unit Electric Operation Pedestrian Rated traction weight Q (t) 1.2 Load centre c (mm) 600 Axle centre to fork face x (mm) 823 Wheel base y (mm) 1167 Weights Service weight with battery kg 630 Wheels/Tyres Wheels type PU Driving wheel size Φ×w(mm) Φ210×70 Bearing wheel size Φ×w(mm) Φ80×70 additional wheels（dimensions） Φ×w(mm) Φ150×58 Wheels, number front/rear (x = driven) 1x+1/4 Track width b10 (mm) 465 Track width b11 (mm) 1024-1424 Dimensions Height of mast, lowered h1 (mm) 2080 Lift h3 (mm) 3000 Height of mast, extended h4 (mm) 3549 Inside width between fixed legs b11 (mm) 900-1300 Single fixed leg width b12 (mm) 124 Overall height(With handle h14 (mm) 870/1200 lowered hength h13 (mm) 65 Overall length l1 (mm) 1784 Length to fork face l2 (mm) 634 Overall width b1/ b2 (mm) 1148-1548 Fork dimensions s/e/l (mm) 35/100/1150 Width of forks b5 (mm) 210-850 Min.Ground clearance m2 (mm) 26 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2210 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2180 Min.Turning radius Wa (mm) 1340 Performance Travel speed,laden/unladen (km/h) 4.0/4.2 Lifting speed, with/without load (mm/s) 92/136 Lowering speed, with/without load (mm/s) 112/98 Maximum climbing ability, with/without load (%) 3/8 Service brake Electromagnetic Drive Drive motor, 60 minute rating (kW) 0.75 Lift motor rating at S3 15% (kW) 2.2 Battery voltage/rated capacity (V/Ah) 2×12/100 Battery weight (± 5%) (kg) 2×27 Others Type of drive control DC Noise level at operator‘s ear (dB(A)) 65 Type of steering Mechanical
