- Description
-
Semi-electric stacker(SPN series)
Product features
1.The hydraulic power unit has the advantages of compact structure, sensitive response and strong power, which can adjust the lifting speed according to the needs of users. The main components are international well-known brands, and the system is stable and long service life;
2.Imported motor relay is equipped with the whole series, with fast action, strong pulling ability, stable operation and long service life;
3.The back of the forks is provided with adjusting bolts. When the forks are slightly deformed due to years of use or other factors, the two forks can be adjusted to the horizontal state by adjusting bolts;
4.The brake directly acts on the universal wheel, and the foot brake operation immediately plays the role of braking, immediately play the role of brake brake, brake light and fast;
5.Reinforcing ribs are set between the internal and external masts to ensure that the mast will not tilt forward when the load is raised, and the vehicle stability is better;

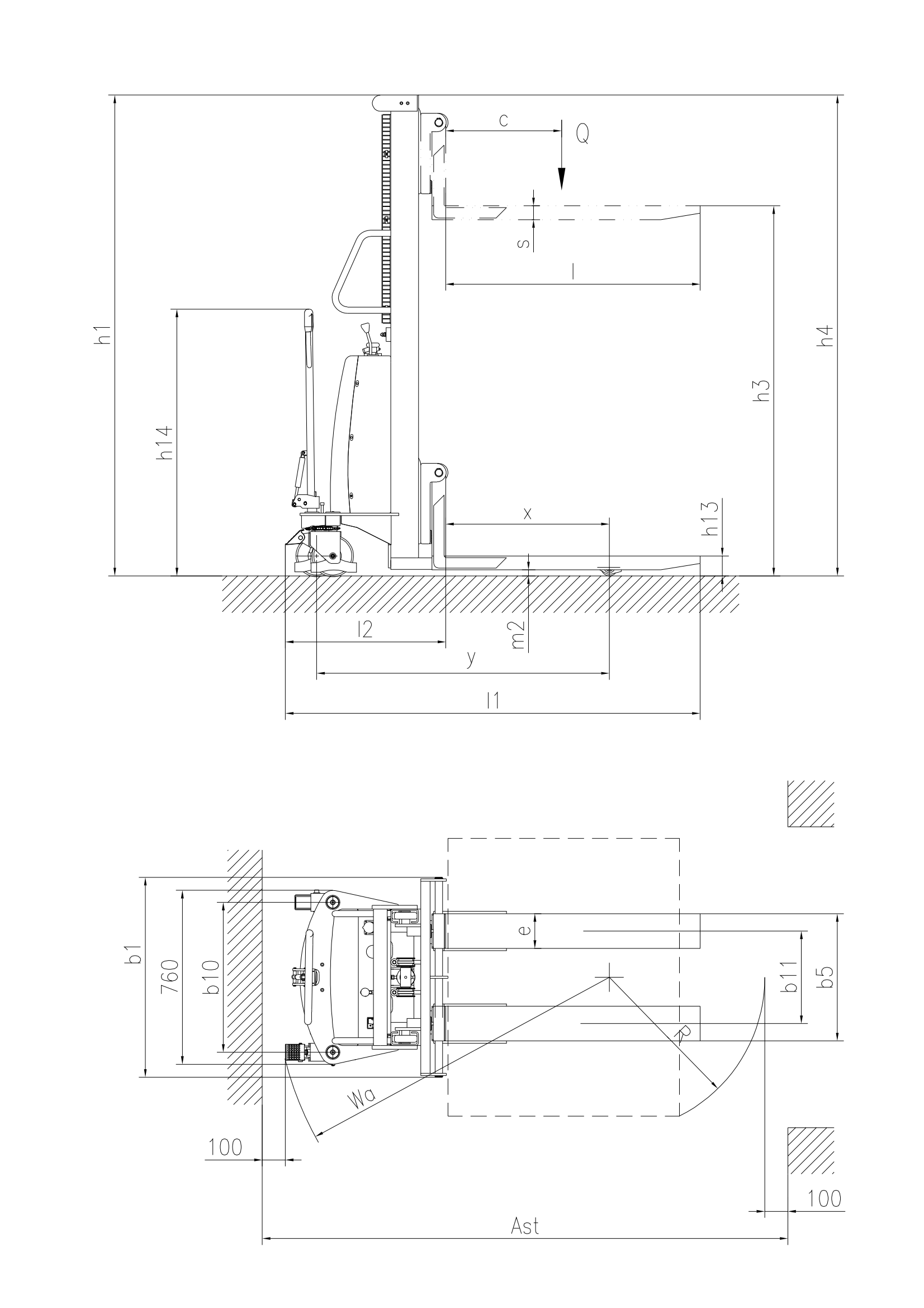

Characteristics Model SPN1016 SPN1030 SPN1516 SPN1530 SPN2016 SPN2020 Power unit Electric Operation Handle Rated traction weight Q (t) 1 1.5 2 Load centre c (mm) 450 Axle centre to fork face x (mm) 705 700 705 700 705 700 Wheel base y (mm) 1190 Weights Service weight with battery kg 315 380 320 395 325 380 Wheels/Tyres Wheels type Nylon/PU Driving wheel size Φ×w(mm) Φ180×50 Bearing wheel size Φ×w(mm) Φ74×70 additional wheels（dimensions） Φ×w(mm) Φ180×50 Wheels, number front/rear (x = driven) 1，1/2 Track width b10 (mm) 648 Track width b11 (mm) 390/490 390/490 390/490 Dimensions Height of mast, lowered h1 (mm) 2077 2077 2077 2077 2077 1577 Lift h3 (mm) 1600 3000 1600 3000 1600 2000 Height of mast, extended h4 (mm) 2077 3567 2077 3567 2077 2567 Fork Height，Lowered h13 (mm) 85 Overall length l1 (mm) 1600/1800 Length to fork face l2 (mm) 700 Overall width b1/ b2 (mm) 760/964 Fork dimensions e/l (mm) 60/150/900（1100） Width of forks b5 (mm) 550/640 550/640 550/640 Min.Ground clearance m2 (mm) 27 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2250 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2240 Min.Turning radius Wa (mm) 1350 Performance Lifting speed, with/without load (mm/s) 60/100 50/120 45/110 Lowering speed, with/without load (mm/s) 150/130 150/130 110/80 Service brake Machinery Drive Lift motor rating at S3 15% (kW) 1.6 Battery voltage/rated capacity (V/Ah) 12/120 Battery weight (± 5%) (kg) 36 Others Noise level at operator‘s ear (dB(A)) ≤70
