- Description
-
Electric Counterbanlanced Stacker
Product featurse:
1.Super-small body, small turning radius, suitable for all kinds of small space;
2.Although it is an economical balancing weight, it is still equipped with high power and high performance lifting pump station, which makes the goods lifting balanced and powerful, excellent quality and reasonable price;
3.Standard emergency stop switch, when The vehicle shuts down to protect, press the emergency stop switch can cut off the power supply, the vehicle stops running, to protect the safety of the operator and equipment;
4.Foldable pedal and arm guard are optional for long time work.

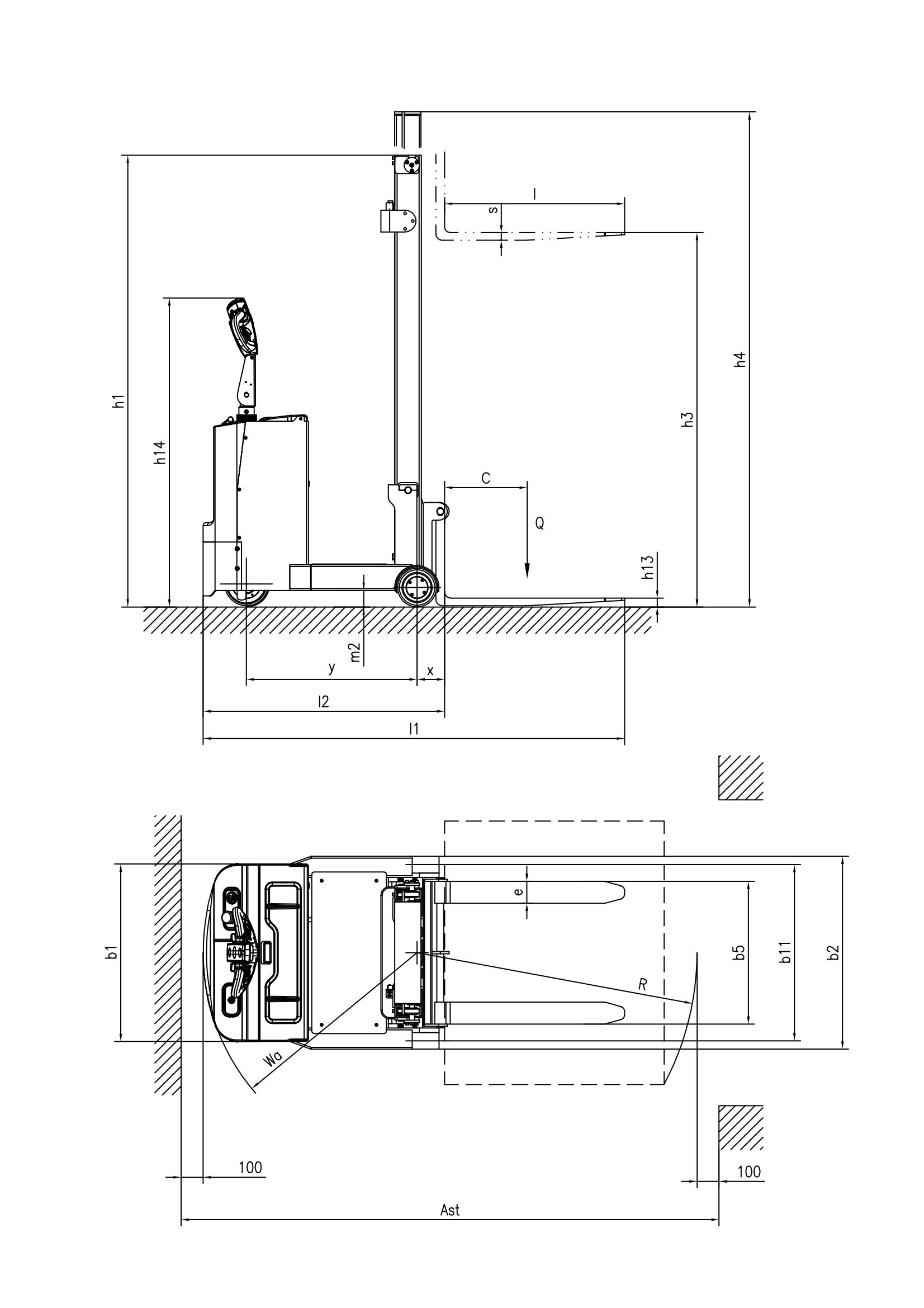

Characteristics Model E0530JZ E0730JZ Power unit Electric Electric Operation Pedestrian Pedestrian Rated traction weight Q (t) 0.5 0.7 Load centre c (mm) 400 400 Axle centre to fork face x (mm) 104 104 Wheel base y (mm) 707 707 Weights Service weight with battery kg 990±30 1090±30 Wheels/Tyres Wheels type polyurethane polyurethane Driving wheel size Φ×w(mm) Φ210×70 Φ250×80 Bearing wheel size Φ×w(mm) Φ178×73 Φ178×73 Wheels, number front/rear (x = driven) 1，2 1，2 Track width b11 (mm) 733 733 Dimensions Height of mast, lowered h1 (mm) 2060 2060 Lift h3 (mm) 3000 3000 Height of mast, extended h4 (mm) 3550 3550 Overall height(With handle h14 (mm) 1075/1502 1075/1502 lowered hength h13 (mm) 40 40 Overall length l1 (mm) 1829 1829 Length to fork face l2 (mm) 1009 1009 Overall width b1/ b2 (mm) 878/808 878/808 Fork dimensions s/e/l (mm) 35/100/820 35/100/820 Width of forks b5 (mm) 210-550 210-550 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2365 2365 Aisle width with pallet 800 x 1200 along forks Ast (mm) 2474 2474 Min.Turning radius Wa (mm) 905 905 Performance Travel speed,laden/unladen (km/h) 4.0/4.2 4.0/4.2 Lifting speed, with/without load (mm/s) 120/130 110/130 Lowering speed, with/without load (mm/s) 130/115 125/115 Maximum climbing ability, with/without load (%) 3/5 5/8 Service brake Electromagnetic Electromagnetic Drive Drive motor, 60 minute rating (kW) 0.75 1.5 Lift motor rating at S3 15% (kW) 2.2 2.2 Battery voltage/rated capacity (V/Ah) 2×12/100 2×12/100 Battery weight (± 5%) (kg) 2×27 2×27
