- Description
-
Electric counterbalanced forklift truck(EA20)
Product Features
1.Small size, light weight, suitable for narrow passages, with high lift, high load capacity, small turning radius, etc.;
2.The layout of the right-mounted joystick fully reflects the ergonomics, improves the comfort of operation, and reduces the labor intensity of the operators;
3.The door frame design with wide field of view makes the operator's field of view wide, and the work efficiency and safety performance can be improved;
4.Buffer-type lifting cylinder, when the cargo drops to close to the ground, the cylinder throttles and slows down, which increases the safety of operation;
5.Adjustable steering wheel and seat can meet the needs of different operators and choose the best operating position;
6.The new headlight design makes the operation easier in poor light environment, improves the safety of night work;
7.For the double-door frame model, part of the free lifting distance is set. When the pallet lifting height is within 100mm, the door frame height does not change. this design is practical when passing through the workshop door or elevator door;
8.The door frame is made of imported high-quality channel steel, which increases the strength of the car body and ensures the stability of high-level heavy-duty lifting;An emergency power off switch is installed on the right side of the seat so that the driver can cut off the power in the shortest time;
9.Equipped with a stable voice reversing alarm. the vehicle will issues a clear voice alarm when driving in reverse gear, to alert surrounding staff to notice;
10.A fire extinguisher bracket is installed on the left rear column of the overhead guard to avoid obstructing the sight of the reviewer mirror. The position of the fire extinguisher is highly accessible, prompting the user to configure a fire extinguisher, improving fire protection awareness, and protecting life and property;
11.The whole vehicle wiring harness adopts imported Amp connectors, which effectively guarantees the reliability of the electrical circuit and the safety of the circuit.

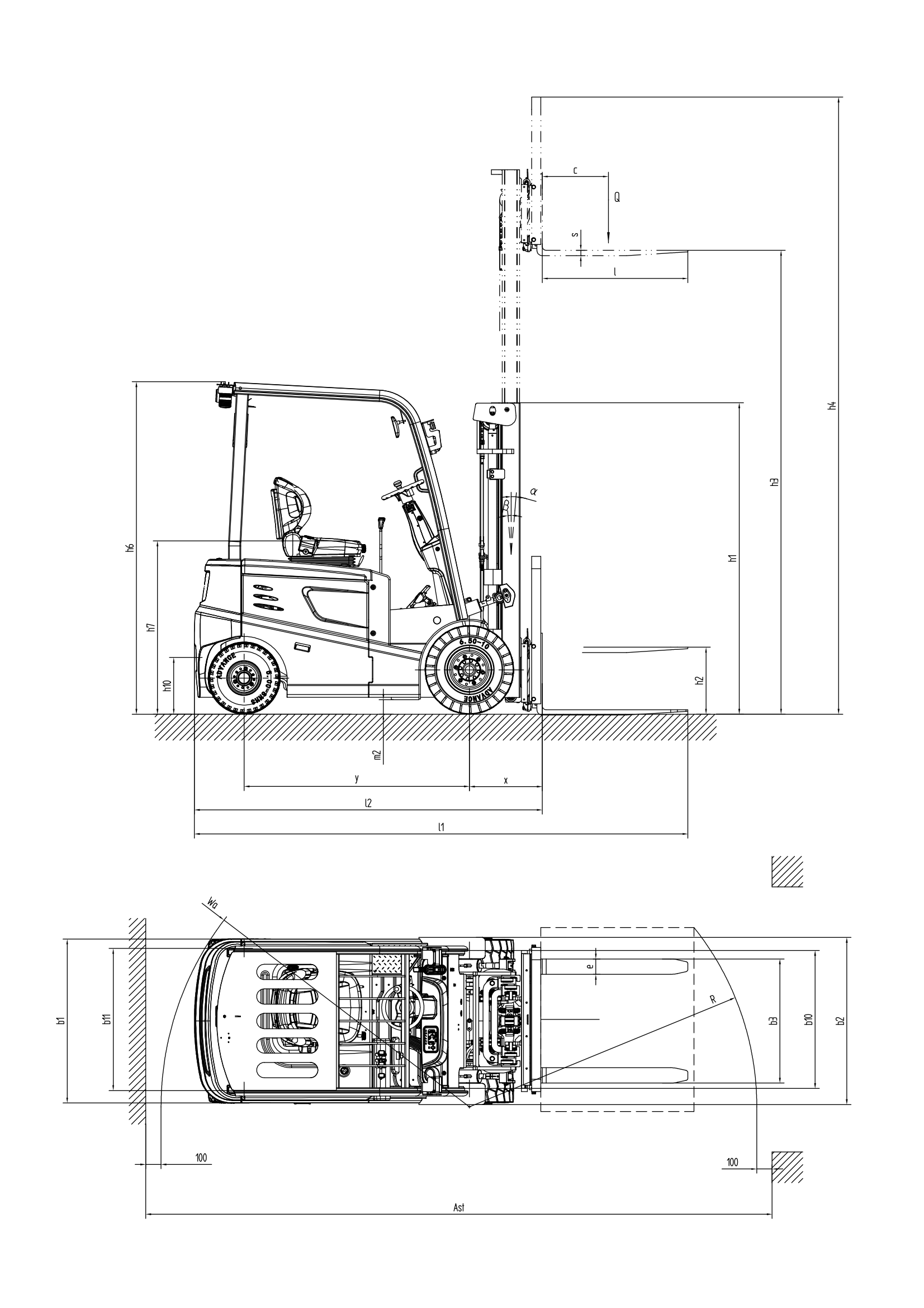

Characteristics Model EA20 Power unit Electric Operation Seated on Rated traction weight Q (kg) 2000 Load centre c (mm) 500 Axle centre to fork face x (mm) 476 Wheel base y (mm) 1470 Weights Service weight with battery kg 3910 Wheels/Tyres Wheels type Pneumatic Driving wheel size 6.5-10-10PR Bearing wheel size 5.0-8-10PR Wheels, number front/rear (x = driven) 2×/2 Track width b10 (mm) 900 Track width b11 (mm) 928 Dimensions Mast/fork carriage tilt, forward/backward a/b (°) 6/6 Height of mast, lowered h1 (mm) 2170 Free lift h2 (mm) 1225 Lift h3 (mm) 4500 Height of mast, extended h4 (mm) 5575 Height of overhead guard (cabin) h6 (mm) 2170 Height of seat/stand-on platform h7 (mm) 1140 Towing coupling height h10 (mm) 370 Overall length l1 (mm) 3221 Length to fork face l2 (mm) 2271 Overall width b1/ b2 (mm) 1070/1090 Fork dimensions s/e/l (mm) 35/100/950 Width of fork carriage b3 (mm) 870 Min.Ground clearance m2 (mm) 80 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 3970 Aisle width with pallet 800 x 1200 along forks Ast (mm) 4100 Min.Turning radius Wa (mm) 2180 Performance Travel speed,laden/unladen (km/h) 13/11 Lifting speed, with/without load (mm/s) 240/320 Lowering speed, with/without load (mm/s) 360/320 Climbing ability, with/without load (%) 12/15 Service brake hydraulic Drive Drive motor, 60 minute rating (kW) 7.5 Lift motor rating at S3 15% (kW) 7.7 Battery according to DIN 43531/35/36 A,B,C,no no Battery voltage/rated capacity (V/Ah) 48/510 Others Type of drive control AC Noise level at operator‘s ear (dB(A)) ≤75 Type of steering hydraulic
